1-leg lifting chain VB 106 with a shortening hook, grade 120

Code: V12B106D08X2000
Brand: P TEAM

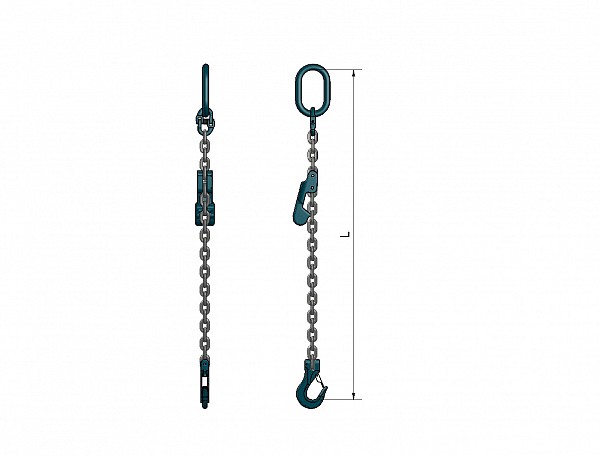

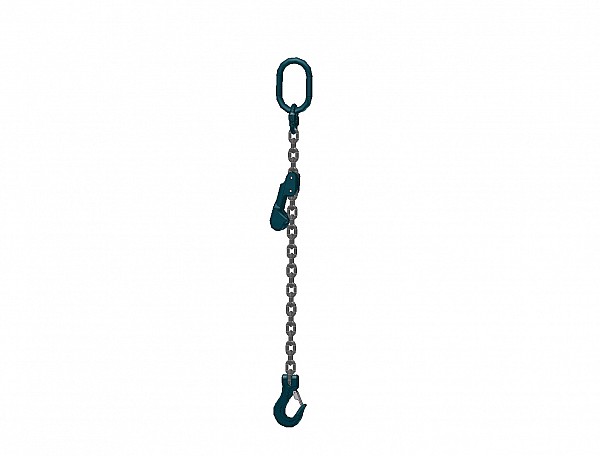

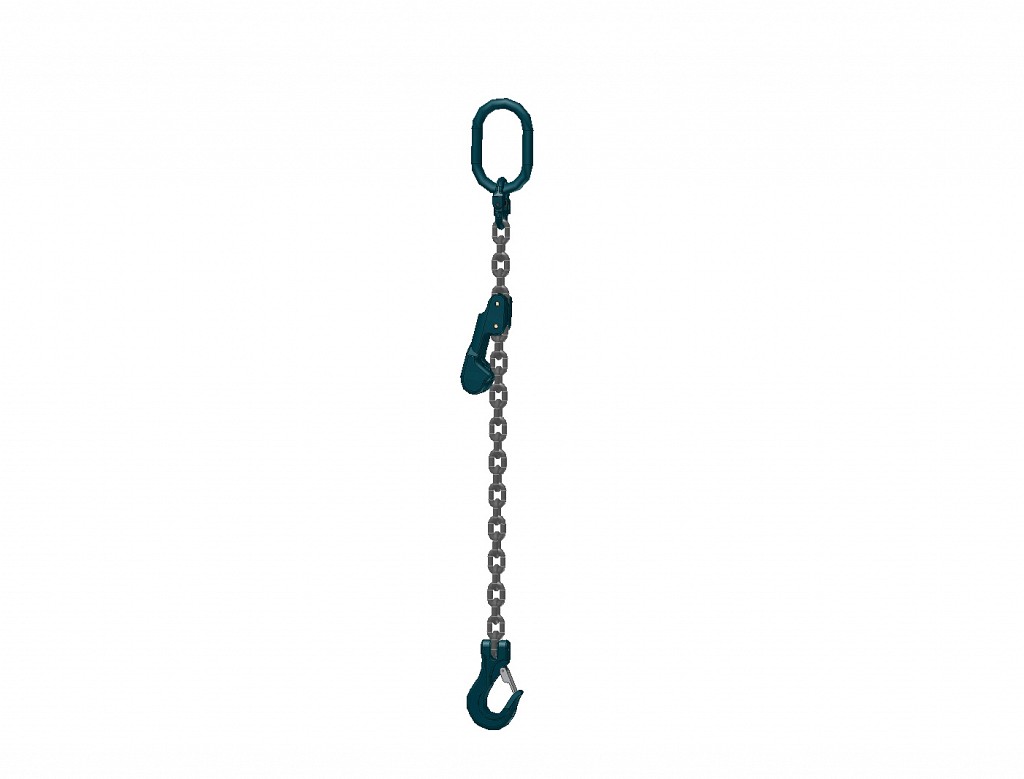

A single-leg chain sling, featuring a shortening link, designed for efficient load lifting. The product consists of a main ring, a shortening link, a chain, and a hook with a safety latch to ensure secure lifting. The shortening link enables the customization of the chain length based on the current work requirements.
Read more
Number of legs: 1 - leg
Shortening article: yes
Availability: 3 to 5 days
Price:
from 340,60 €

The diameter of the chain link is carefully chosen to match the required load capacity. Chain lengths that are not offered in this store can be made for you upon request. This is a grade 120 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher Working Load Limit. This product is manufactured in Slovenia. It has been designed, tested and certified to comply with the EN 818 standard. All chains are supplied with instructions for use and a CE declaration of conformity. Please be mindful of the working load limit for lifting chains in various lifting configurations.

  • Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of the chain sling with a shortening link type VB 106, grade 120.



Angle

F

1

0.8

Diameter

mm

Working load limit

kg

8-

12

3000

2400

10-12

5000

4000

13-

12

8100

6480
