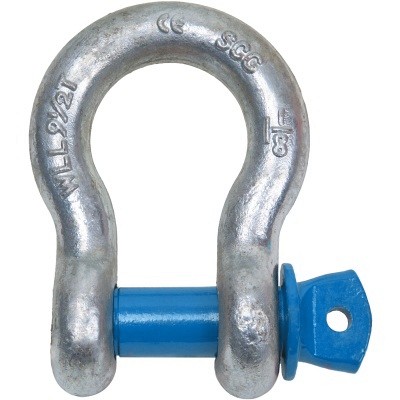

Omega shackle type HA2

Nominal
size
inch

Working
load limit
kg

Art. No.

HA2

1/4

500

451201

5/16

750

451202

3/8

1000

451203

7/16

1500

451204

1/2

2000

451205

5/8

3250

451206

3/4

4750

451207

7/8

6500

451208

1

8500

451209

1 1/8

9500

451210

1 1/4

12000

451211

1 3/8

13500

451212

1 1/2

17000

451213

1 3/4

25000

451214

2

35000

451215

2 1/2

55000

451216

3

85000

451217

3 1/2

120000

451218

Nominal
size
inch

Working
load limit
kg

d1
mm

d2
mm

d3
mm

d4
inch

b1
mm

h1
mm

Weight

kg

HA2

1/4

500

6,5

8

17

5/16

12

-

0,05

5/16

750

8

10

21

3/8

13

26

0,08

3/8

1000

10

11

25

7/16

16

31

0,14

7/16

1500

11

13

27

1/2

18

36

0,22

1/2

2000

13

16

30

5/8

21

41

0,33

5/8

3250

16

19

40

3/4

27

51

0,65

3/4

4750

19

22

48

7/8

32

60

0,97

7/8

6500

22

25

54

1

36

71

1,52

1

8500

25

29

60

1 1/8

43

81

2,39

1 1/8

9500

29

32

67

1 1/4

46

90

3,15

1 1/4

12000

32

35

76

1 3/8

52

100

4,32

1 3/8

13500

35

38

84

1 1/2

57

113

5,67

1 1/2

17000

38

41

92

1 5/8

60

124

7,79

1 3/4

25000

44

51

110

2

73

146

12,51

2

35000

51

57

127

2 1/4

83

171

18,50

2 1/2

55000

63

70

152

2 3/4

105

203

37,58
