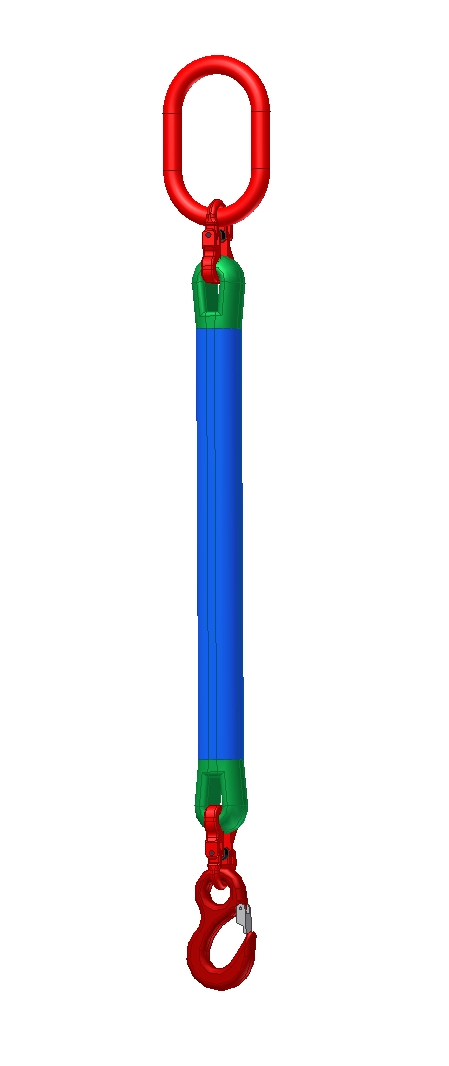

Lifting sling with hooks EDT 100 - single legged

Lifting sling with hooks EDT 100 - single legged

Code: 610101

Brand: P TEAM

1-legged lifting sling EDT 100 with a load capacity of 1000 kg. The number of legs allows for various lifting configurations, as shown in the table provided in the detailed product description below. EDT type lifting slings consist of round slings enclosed in a protective sleeve. These slings are connected to a master link using connecting links and typically feature end fittings, usually hooks. Lifting slings are easy to use, have a long service life and can be used in all weather conditions. The product complies with the EN 1492-1, EN 1677 standards and has a safety factor of 7:1, ensuring reliability and safety during use. Our lifting slings are custom-made to fit your specific needs, ensuring they are fully tailored to your requirements.

Finish on tape: hook - loop

Length:

Number of legs: 1 - leg

Round sling: no

Working load limit:

Reset options

Availability: 3 to 5 days

Price:

from 109,31 €

Add to cart

You have a question about this product?

More details

This product is a single-legged lifting sling EDT 100 finished with hooks. Lifting slings are manufactured in Slovenia and made in accordance with the EN 1492-1 standard. They have a safety factor of 1:7. The hooks and other metal components are manufactured in accordance with the EN 1677 standard. Lifting slings can be used in temperatures ranging from -40°C to +100°C, but it is recommended to consult the manufacturer before using them in temperature thresholds. Each sling is supplied with instructions for use and a CE declaration of conformity. The product can be customized to meet specific requirements.

Warranty: 1 year
Warning: The working load limits for different lifting methods may vary from the declared limits, necessitating strict adherence to the operating instructions! Please refer to the table below for details regarding the WLL for different lifting configurations.

Images of the products are symbolic.

The table presents working load limits for lifting slings type EDT 100.

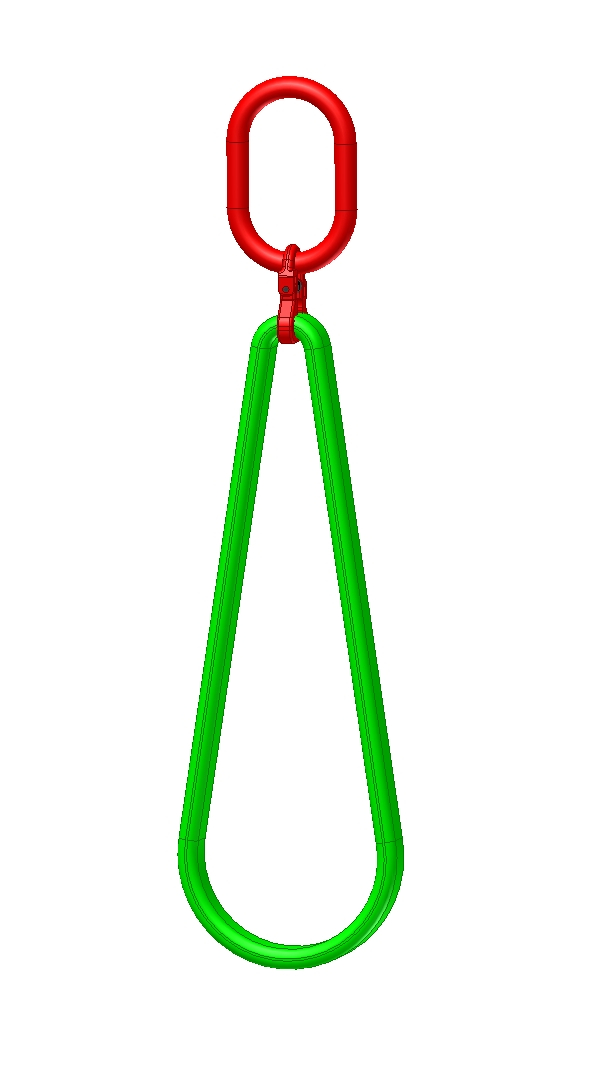

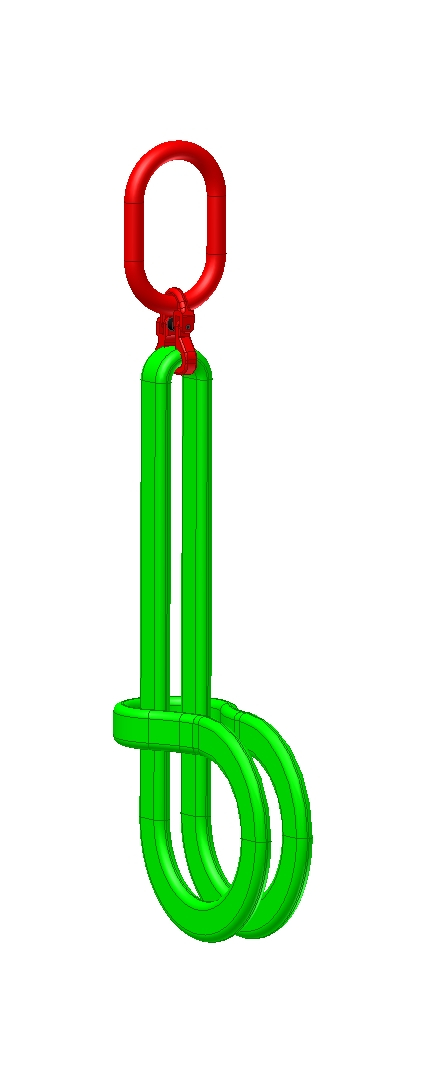

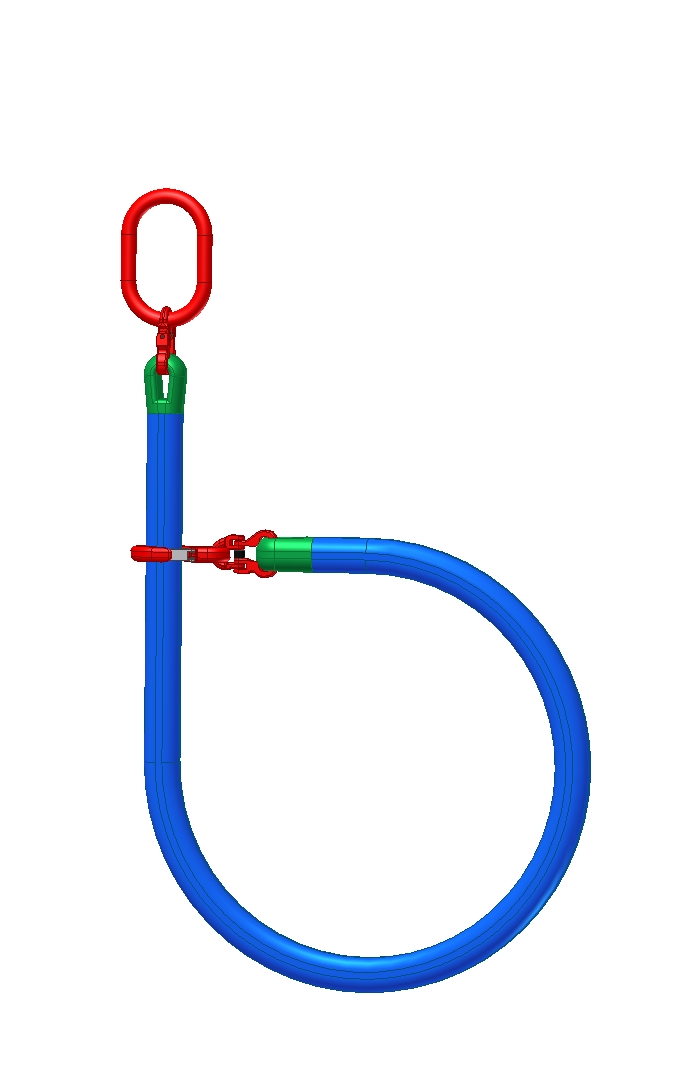

Sling configuration
Angle	0°	0°	0°	0°-45°	45°-60°
Load lifting factor	F=1	F=0,8	F=0,8	F=0,7	F=0,5
PBT	Working load limit (kg)
100	1000	800	800	700	500
200	2000	1600	1600	1400	1000
300	3000	2400	2400	2100	1500
400	4000	3200	3200	2800	2000
500	5000	4000	4000	3500	2500
600	6000	4800	4800	4200	3000
800	8000	6400	6400	5600	4000
1000	10000	8000	8000	7000	5000
1500	15000	12000	12000	10500	7500
2000	20000	16000	16000	14000	10000
