The working load limit is shown in the table.
The diameter of the chain link is selected according to the required load capacity of the chain.
Grade: 100
Load chains are manufactured in accordance with standard EN 818
Warranty: 1 year
Made in Slovenia.
All chains are equipped with instructions for use and a declaration of conformity of CE. Taking into account the working load limit of load chains in different lifting methods. Chain lengths not found in this store can be order made.

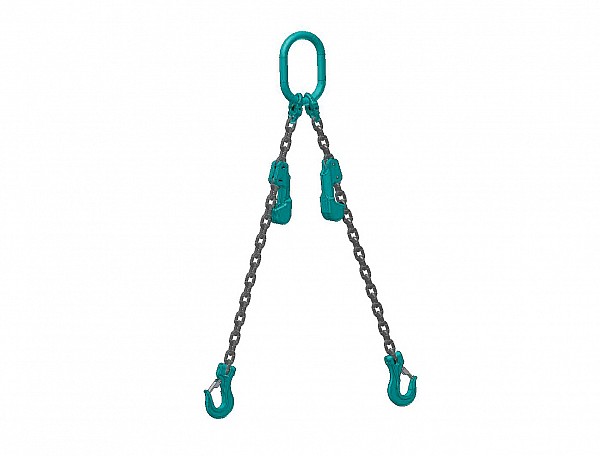

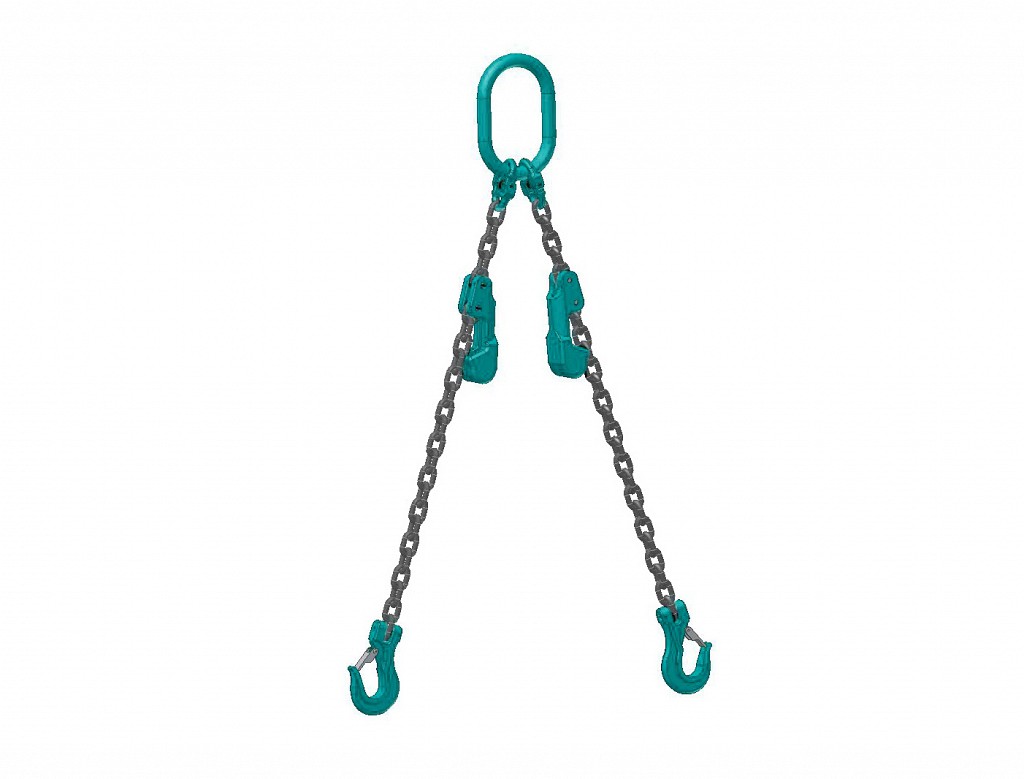

** product image (color) is symbolic **
 |
 |
 |
||||
|
Angle |
0°- 45° |
45°- 60° |
0°- 45° |
45°-60° |
0°- 45° |
45°- 60° |
|
F |
1.4 |
1 |
1.12 |
0.8 |
1.1 |
0.8 |
|
Diameter mm |
Working load limit kg |
|||||
|
6 7 |
2000 2660 |
1400 1900 |
1560 2100 |
1120 1500 |
1540 2000 |
1120 1500 |
|
8 10 |
3500 5600 |
2500 4000 |
2800 4400 |
2000 3200 |
2750 4400 |
2000 3200 |
|
13 16 |
9300 14000 |
6700 10000 |
7500 11200 |
5300 8000 |
7300 11000 |
5300 8000 |
|
18 19 |
17500 19600 |
12500 14000 |
14000 15600 |
10000 11200 |
13700 15400 |
10000 11200 |
|
20 22 |
22400 26600 |
16000 19000 |
17900 21200 |
12800 18200 |
17600 20000 |
12800 18200 |
|
26 |
37000 |
26500 |
29000 |
21000 |
29000 |
21000 |
