The diameter of the chain link is carefully chosen to match the required load capacity. Chain lengths that are not offered in this store can be made for you upon request. This is a grade 80 product. The store offers lifting chain slings in grades 80, 100, and 120. A higher grade number indicates the use of higher quality steel, resulting in increased tensile strength and a higher Working Load Limit. This product is manufactured in Slovenia. It has been designed, tested and certified to comply with the EN 818 standard. All chains are supplied with instructions for use and a CE declaration of conformity. Please be mindful of the working load limit for lifting chains in various lifting configurations.

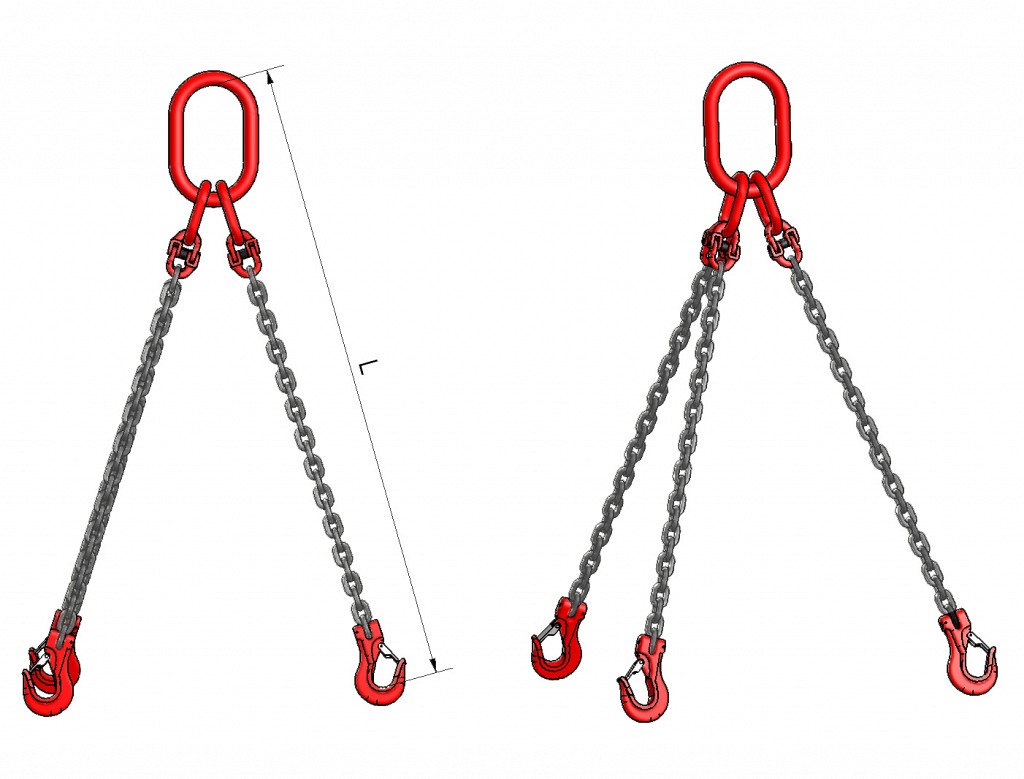

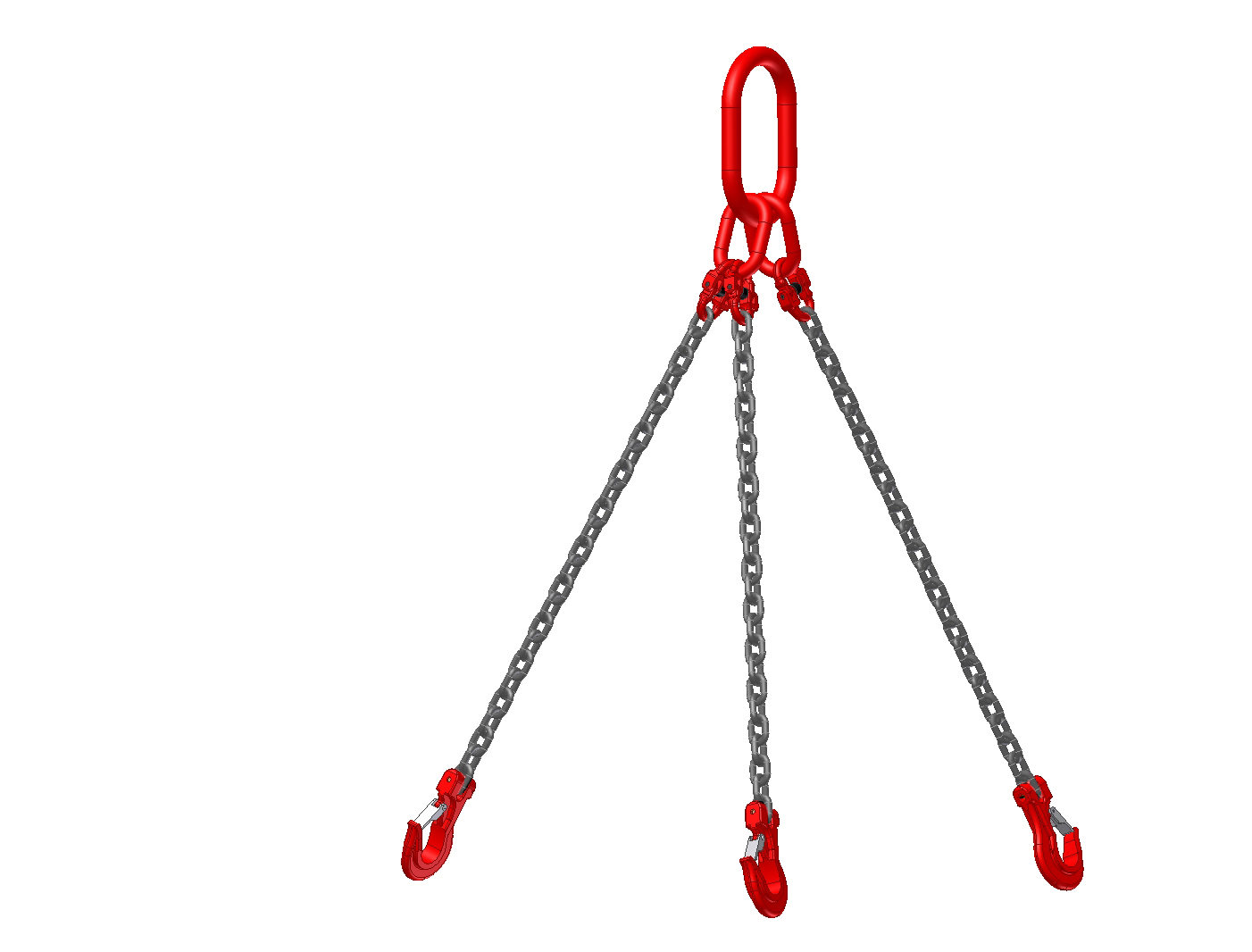

Images of the products are symbolic.
The table presents technical characteristics of the chain sling type VB 302, grade 80.
Angle |
0°-45° |
45°- 60° |
F |
2.1 |
1.5 |
Diameter (mm) |
Working load limit kg |
|
6 7 |
2360 3150 |
1700 2240 |
8 10 |
4250 6700 |
3000 4750 |
13 16 |
11200 17000 |
8000 11800 |
18 19 |
21200 23600 |
15000 17000 |
20 22 |
26500 32000 |
18000 22400 |
26 32 |
45000 63000 |
31500 47500 |
