Hook with ball bearing WHS with safety latch

Code: 411006

Brand: P TEAM

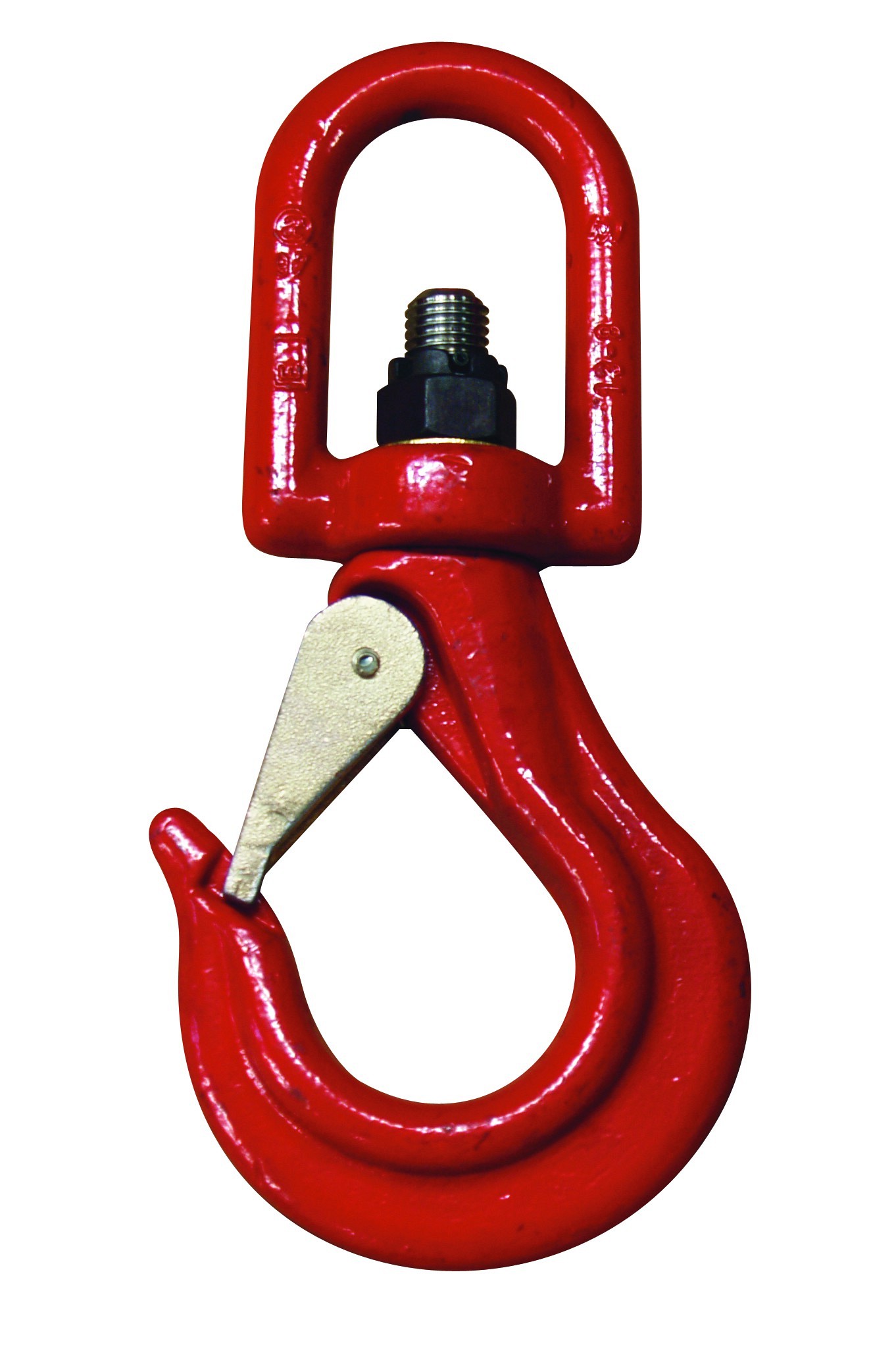

Swivel hook type WHS equipped with ball bearing and extra solid safety latch. The product is red varnished and has a galvanized latch. These hooks can be revolved when loaded.

Hook type: hook with safety latch

Working load limit:

Reset options

In Stock

Price:

from 126,20 €

Add to cart

You have a question about this product?

More details

Swivel hook type WHS with ball bearing should not be used at temperatures exceed ing 125°C as the function of the bearing may be affected at higher temperatures. The store offers two types of swivel hooks. The user should be aware of the type of swivel hook they’re using prior to lifting load. Swivel hook type WHS is a swivel hook with bearing and has a bearing inside that allows the hook to rotate freely under load. Additionally, the store offers positioning swivel hooks, which are not designed to rotate while under load and are only to be used when positioning the hook onto the pick point. Galvanized latches are protected against elements that may cause accelerated corrosion or deterioration to the product. Forged hooks grade 80 are designed, tested and certified in compliance with the tehnical directives EN 1677.

Warranty: 1 year

Images of the products are symbolic.
The table presents hooks with ball bearing type WHS, their dimensions and other technical characteristics.

Type	Woking load limit kg	i mm	t mm	c mm	b mm	d mm	h mm	s mm	m mm	Weight kg	With ball bearing Art. No.
Type	Woking load limit kg	i mm	t mm	c mm	b mm	d mm	h mm	s mm	m mm	Weight kg	With ball bearing Art. No.
WHS 6-8	1120	117	137	25	34	13	27	21	19	0,7	411006
WHS 7-8	1500	205	160	27	36	15	30	27	24	1,1	411007
WHS 8-8	2000	226	278	31	38	16	32	30	28	1,3	411008
WHS 10-8	3150	260	200	33	42	18	42	31	33	2,4	411010
WHS 13-8	5300	352	281	55	64	24	47	42	44	5,2	411013
