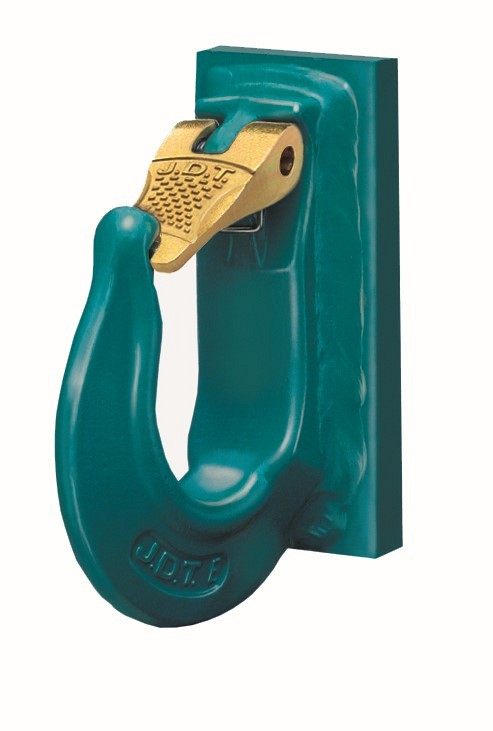

Hook AHK, weld-on type

Code: 465206
Brand: P TEAM
The weld on hook AHK is an ideal solution for applications where reliable attachment to structures is required. Thanks to its robust construction and precise workmanship, it is extremely reliable and resilient.
Read more
Thread shape: assembly by welding

The weld on AHK hook is part of the load-carrying equipment within the meaning of the Machinery Directive 2006/42/EC and meets the highest quality standards. The hook's load capacity is engraved on each individual product.

  • Warranty: 1 year

Images of the products are symbolic.

The table presents hooks type AHK, their dimensions and other technical characteristics.

Type

Working load

limit kg

a

b

c

h

l

m

Weight

kg

Art. No.

mm

mm

mm

mm

mm

mm

AHK 6

1400

5

40

10

90

68

22

0,61

465206

AHK 8

2500

5

50

10

125

85

30

1,2

465208

AHK 10

4000

8

60

15

140

110

37

2,3

465210

AHK 13

6700

8

70

15

175

135

47

3,9

465213

AHK 16

10000

8

80

15

210

140

51

5,65

465216
