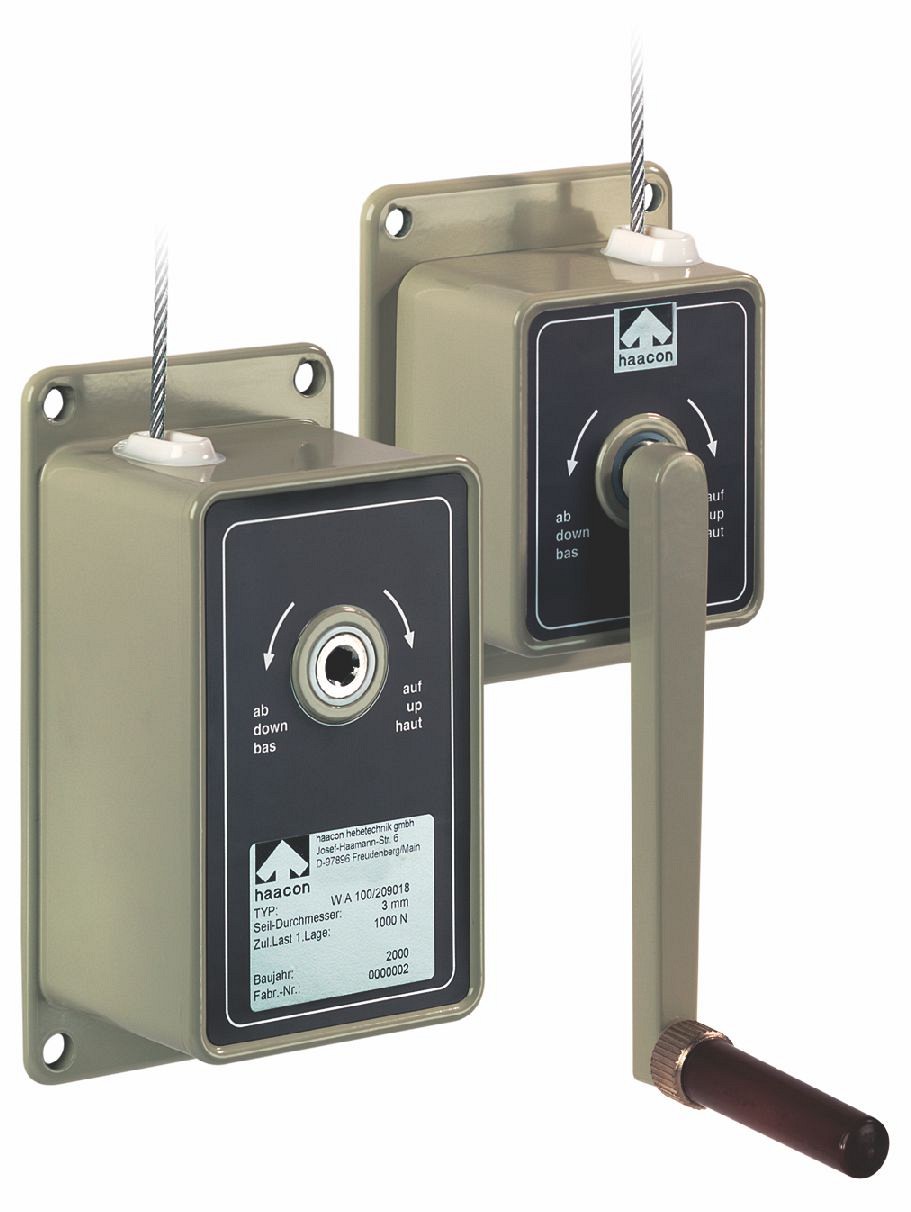

Hand winch type WA

Code: 936302
Brand: P TEAM
Hand rope winch type WA, suitable for industrial use. Two types are avalible with varying load capacities, up to 50 kg or up to 100 kg. The product is wall mounted. For further technical details, please refer to the table in the detailed product description.
Read more
Material: aluminum
Mounting method: on the wall

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is aluminium. Additionally, the store offers galvanized, powder coated or stainless steel products. Zinc plating offers protection against elements that may cause accelerated corrosion or deterioration to the product. Powder coating offers superior protection against UV rays and physical damage. Stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting. Installation and maintenance instructions are included with delivery.

  • Warranty: 1 year

Images of the products are symbolic.

The table presents technical characteristics of hand rope winch type WA.

Technical data

Type

WA 50

WA 100

capacity

50 kg

100 kg

wire rope Ø

2 mm

3 mm

rope capacity max.

12 m

8 m

crank force

80 N

60 N

lift / crank turn

96 mm

38 mm

weight

1 kg

2,1 kg

Art. No.

Aluminium winch

936301

936302
