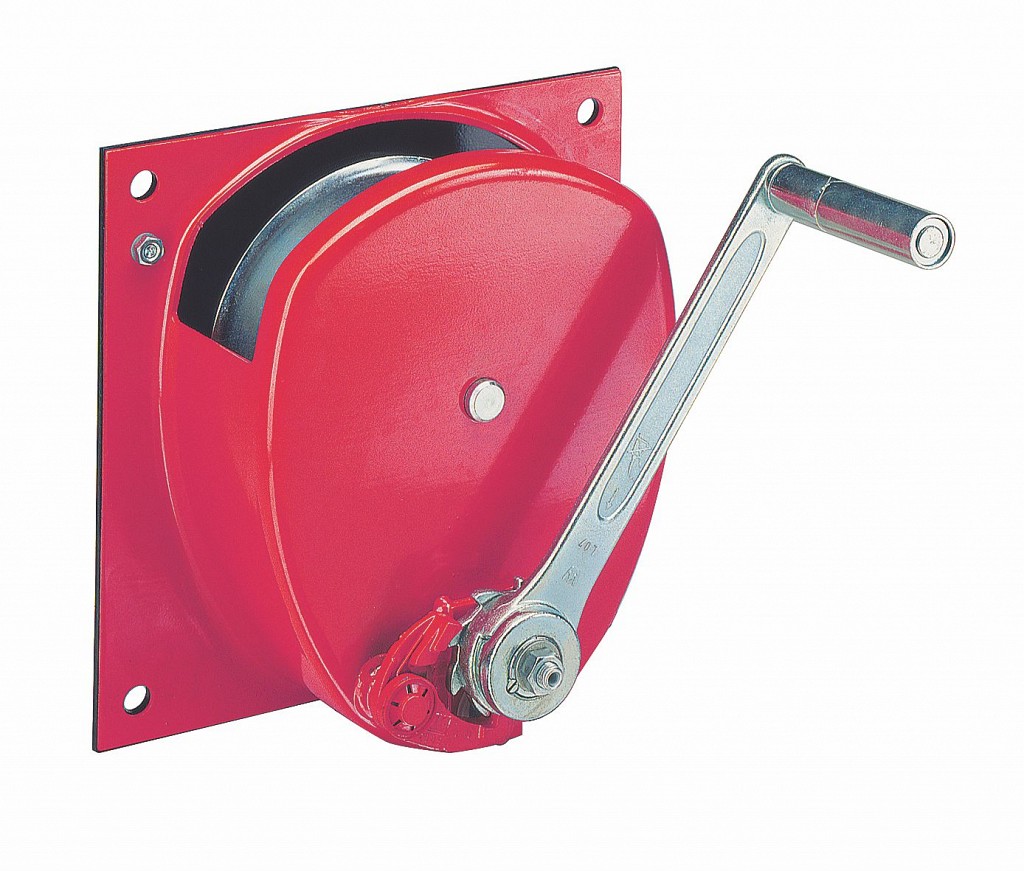

Hand winch type 220.1

Code: 693622
Brand: P TEAM
Hand rope winch type 220.1, suitable for industrial use. Two types are avalible with varying load capacities, up to 750 kg or up to 1000 kg. The product is wall mounted. For further technical details, please refer to the table in the detailed product description. Powder coated products offer improved resistance to UV rays and physical damage, such as scratches and chips, due to thicker protective layer.
Read more
Material: metal, powder coated
Mounting method: on the wall
Availability: 10 do 14 dni
Price:
from 603,90 €

The store offers hand winches from a variety of materials, designed to fulfill your diverse requirements. This product is powder coated. Additionally, the store offers aluminium, zinc plated or stainless steel products. Zinc plating only offers protection against elements that may cause accelerated corrosion or deterioration to the product.  In comparison to powder coating, stainless steel has an even better resistance and will remain rust free for much longer. Aditionally, it is long lasting.  Installation and maintenance instructions are included with delivery.

  • Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of hand rope winch type 220.1.

Technical data

Type

220.0,75

220.1

capacity

750 kg

1000 kg

- 1st rope position

750 kg

1000 kg

- last rope position

520 kg

750 kg

lift / crank turn



1st rope position

28 mm

19 mm

crank force

200 N

180 N

rope capacity

12 m

10 m

wire rope necessary:



DIN 3060 FE zn k 1770 sZ

8 mm Ø

9 mm Ø

weight

14 kg

15 kg

Art. No. powder

Coated winch

936322

936323
