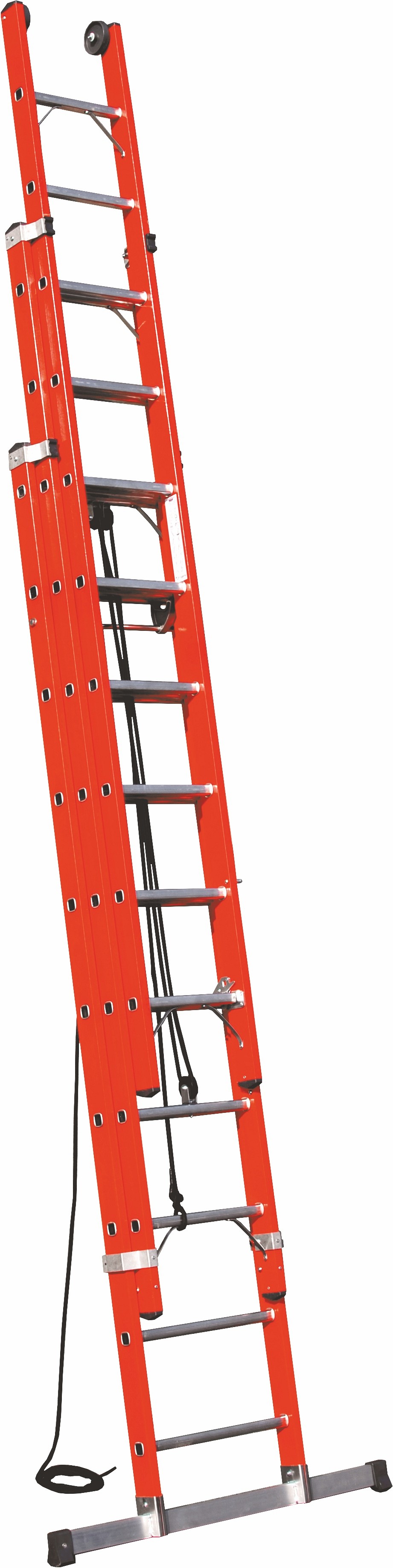

Extendable three-part ladder V060 with rope

Code: 816010
Brand: Frigerio
Professional two-part extendable ladder made of 90 mm wide fiberglass profile, which ensures strength and long life. The ladder is used as a leaning ladder. To make it easier to set up the ladder, there are wheels on the upper profile that slide along the wall, while pulling the rope stretches the ladder to the required length, which makes the installation easier. They are manufactured in accordance with the EN131 standard and have a 5-year warranty. Due to the structure of the sides made of fiberglass profile, the ladder also complies with the breakdown voltage standard EN 50528 and 61478.
Read more
Ladder shape: leaning ladder
Ladder type: fiber glass
Availability: 10 do 14 dni
Price:
from 1.157,44 €
  • 30 x 30 mm square-section non-slip aluminium rungs
  • Fibreglass upright 78/95 x 26 mm certified for high voltage insulation CEI EN 61478

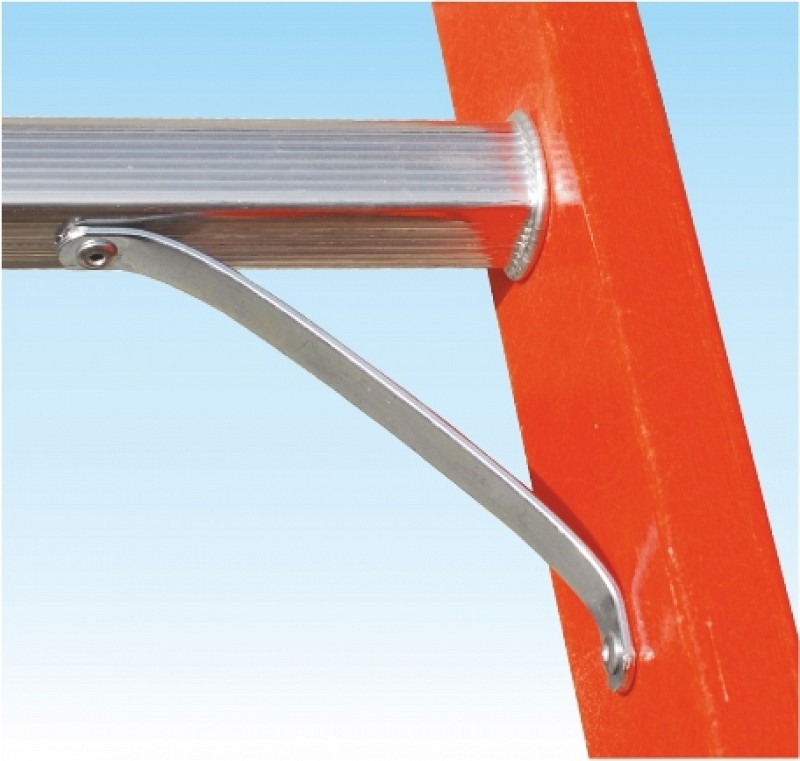

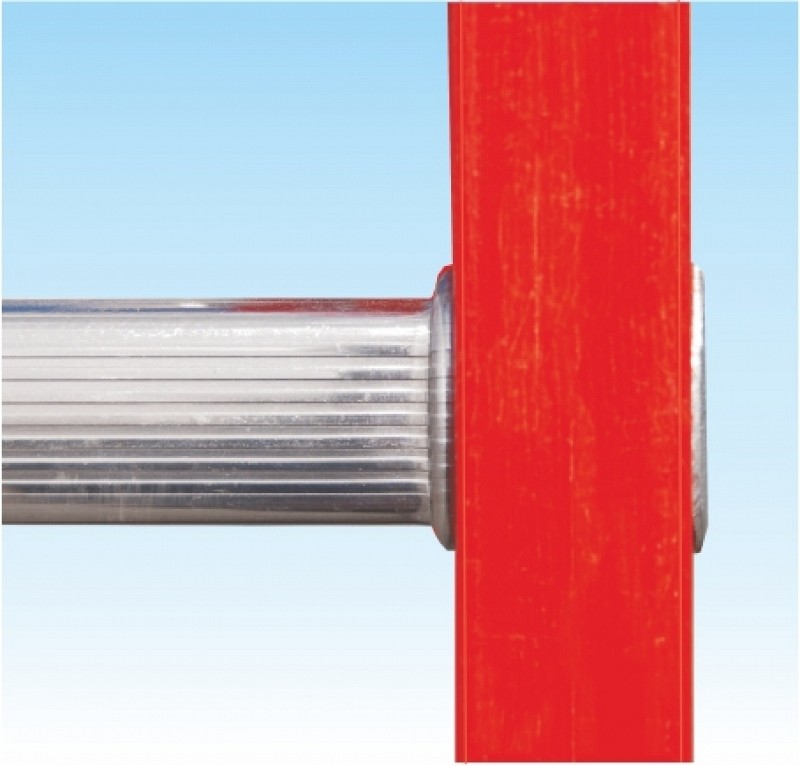

  • Rung-vertical upright connection with double, internal and external edging

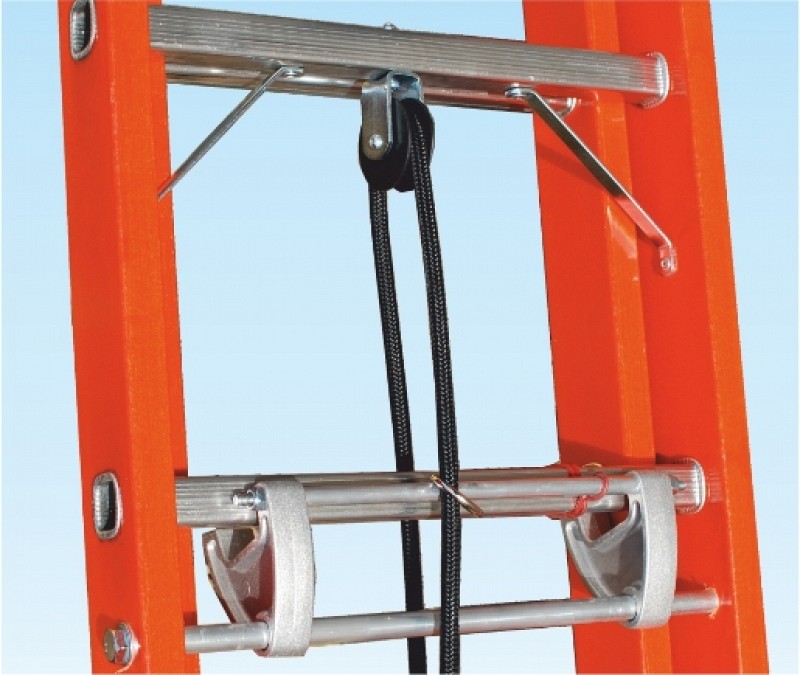

  • Adjustable extension with rope on double pulley halving effort using a single rope for extension and retraction of the ladder sections

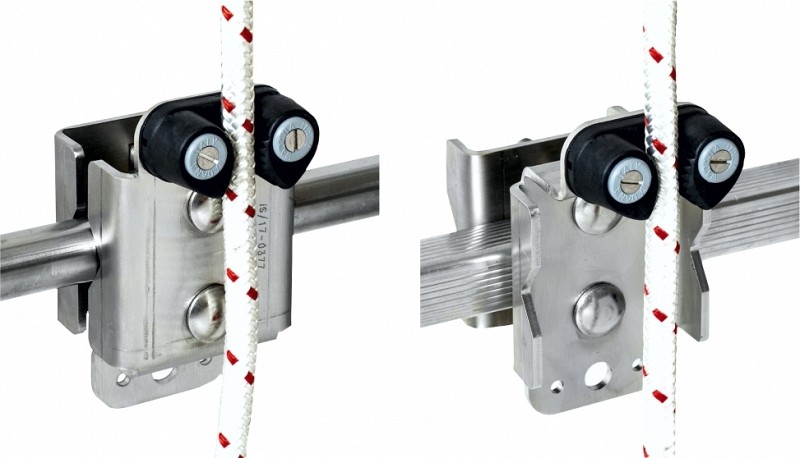

  • Sections held in place by automatically coupled cast aluminium device with single rope
  • The rope allows simultaneous extension of the two upper sections

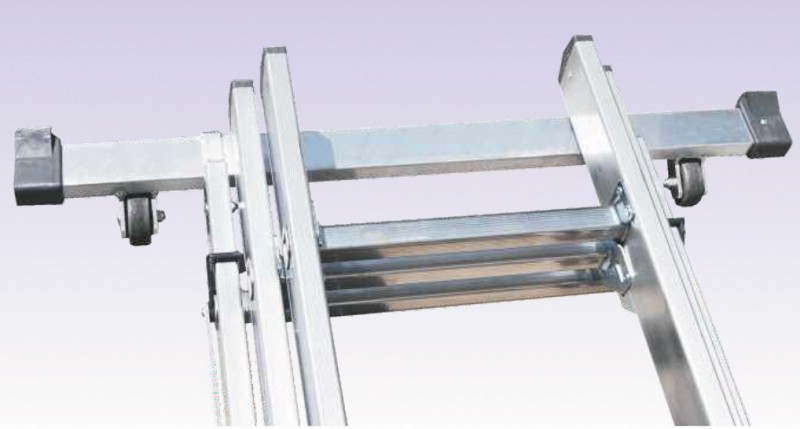

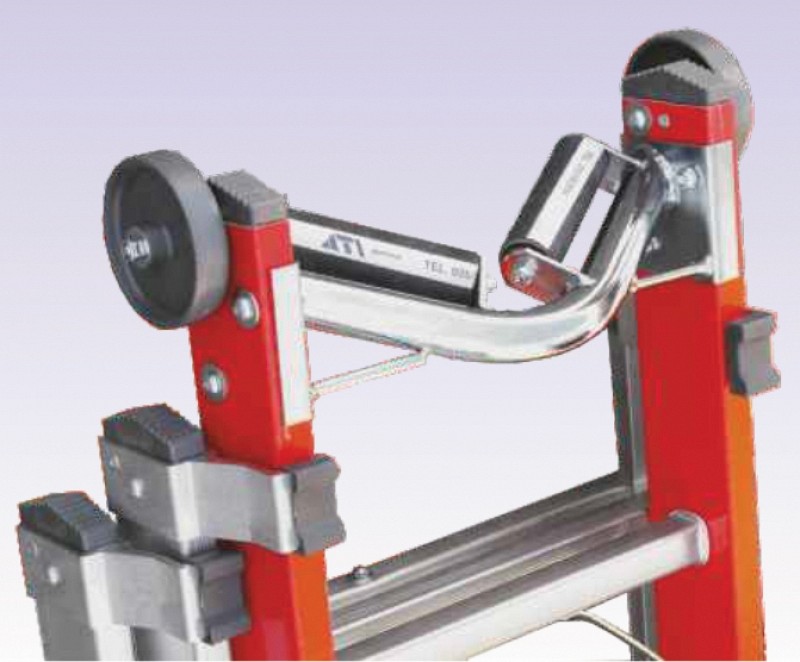

  • The last section of ladder extends manually and it is equipped with wheels for sliding on wall

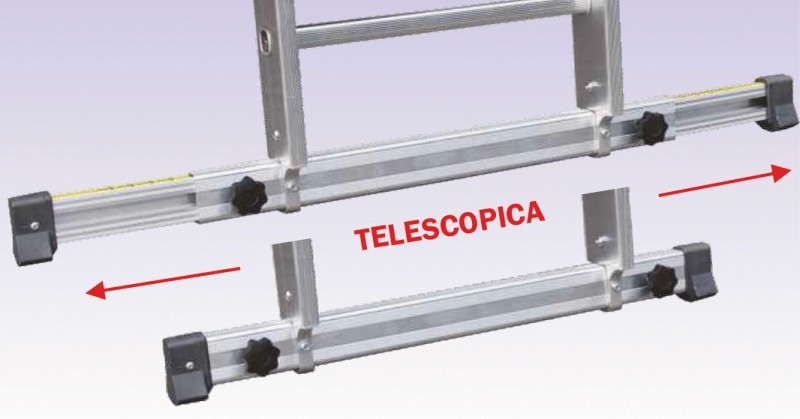

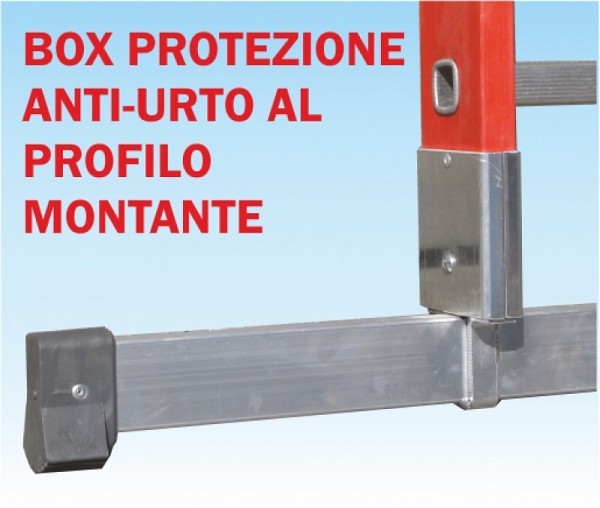

  • Stabiliser base in aluminium with protective box on the impact-proof profile allowing rapid assembly and dismantling

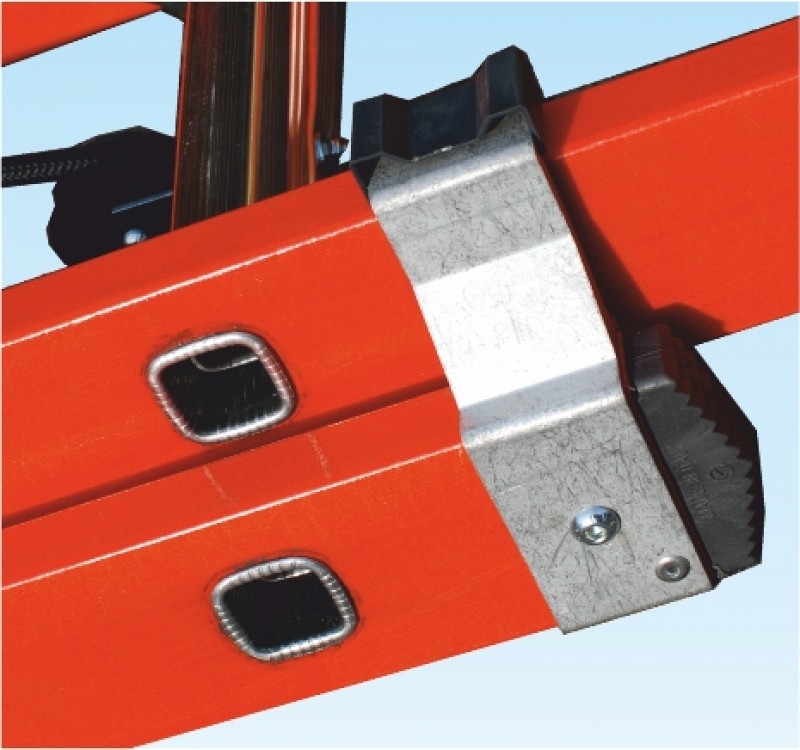

  • Reinforced anti-impact upper and lower ends with galvanized steel ribs
  • Strong heat-shrink wrapping 80 micron
  • Equpped with instructions for use

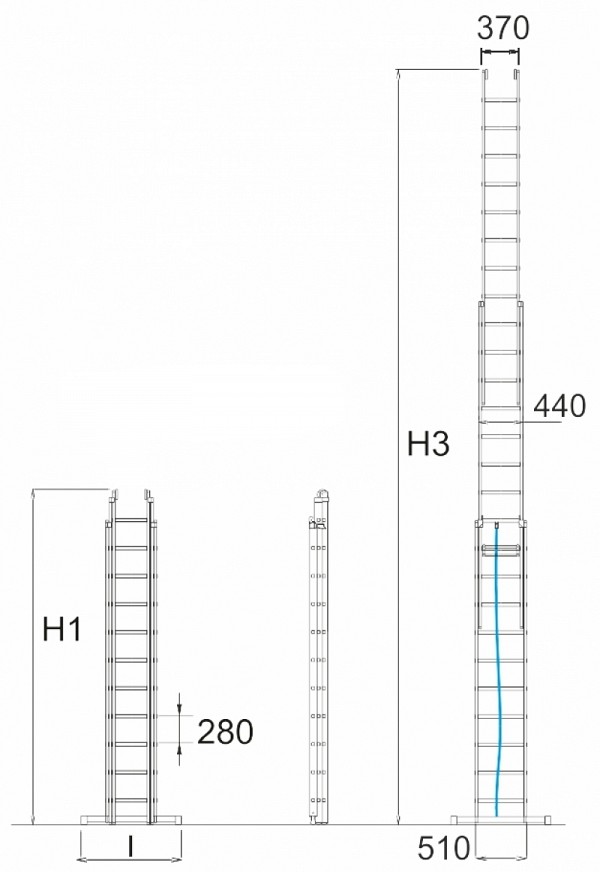

Total steps

Regualtion

/ Normative

Capacity

kg

Upright

mm

Length when folded

H1   m

Full length

H3   m

Base Width

I   cm

Width section

1°- 2° - 3° cm

Section-divider on request mandatory

yes / no.

Weight

kg

Article No.

10+10+10

EN 131

150

78 x 26

3,11

7,23

110

38/45/52

no

27,4

816010

12+12+12

EN 131

150

95 x 26

3,67

8,97

120

38/45/52

no

42,3

816012

14+14+14

EN 131

150

95 x 26

4,2

10,65

120

38/45/52

no

49,2

816014

16+16+16

EN 131

150

95 x 26

4,79

12,05

120

38/45/52

no

50,6

816016
