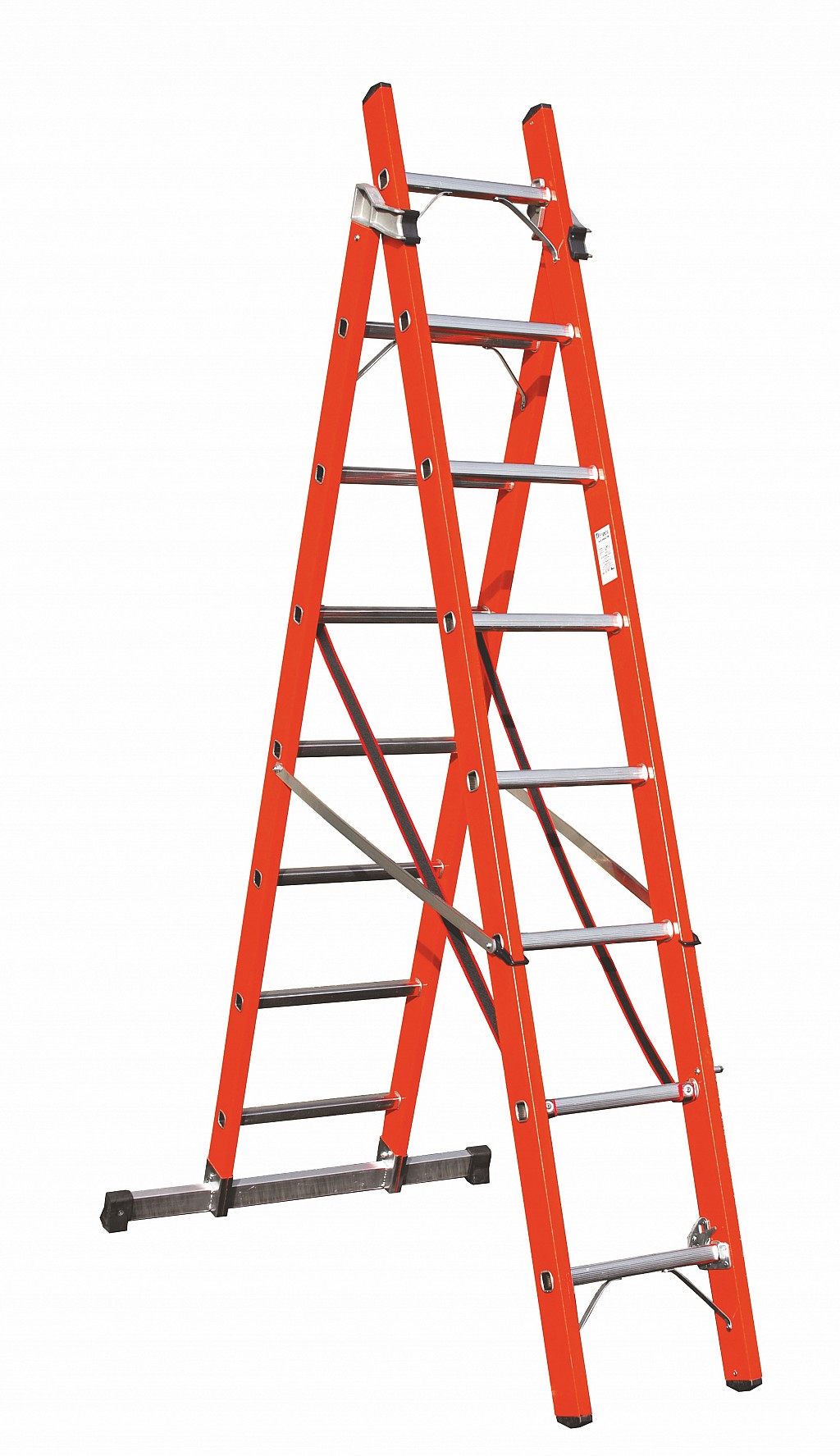

Two-sided A ladder V045 with base

Code: 814506

Brand: Frigerio

Professional two-sided A ladder made of 90 mm wide fiberglass profile, which ensures strength and long life. They are manufactured in accordance with the EN131 standard and have a 5-year warranty. Due to the structure of the sides made of fiberglass profile, the ladder also complies with the breakdown voltage standard EN 50528 and 61478.

Ladder shape: A ladder

Ladder type: fiber glass

Number of rungs:

Reset options

Availability: 10 do 14 dni

Price:

from 319,74 €

Add to cart

You have a question about this product?

More details
Specifications

30 x 30 mm square-section non-slip aluminium rungs
Fibreglass upright 78/95 x 26 mm certified for high voltage insulation CEI EN 61478

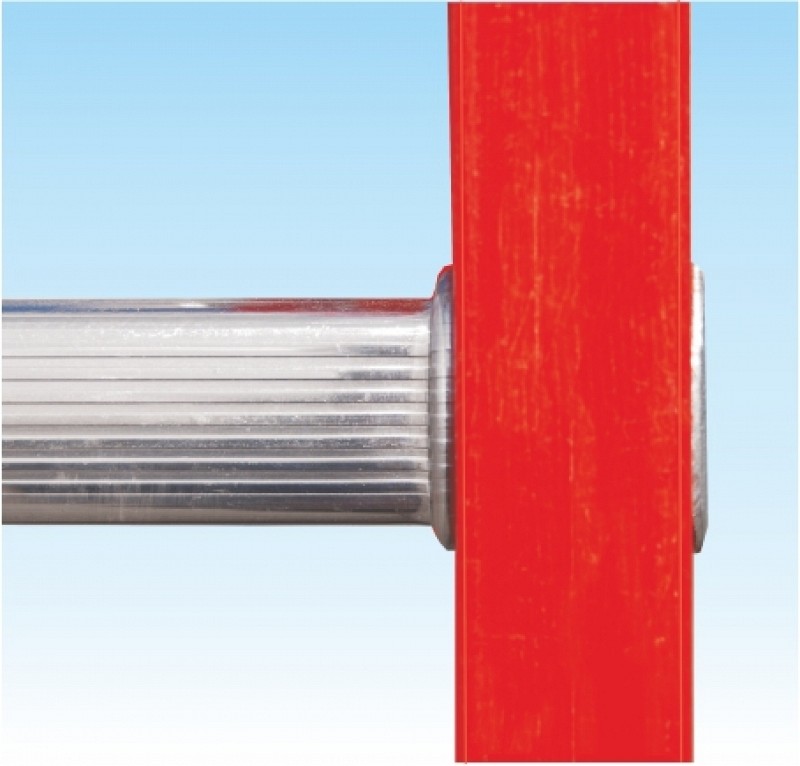

Rung-vertical upright connection with double, internal and external edging

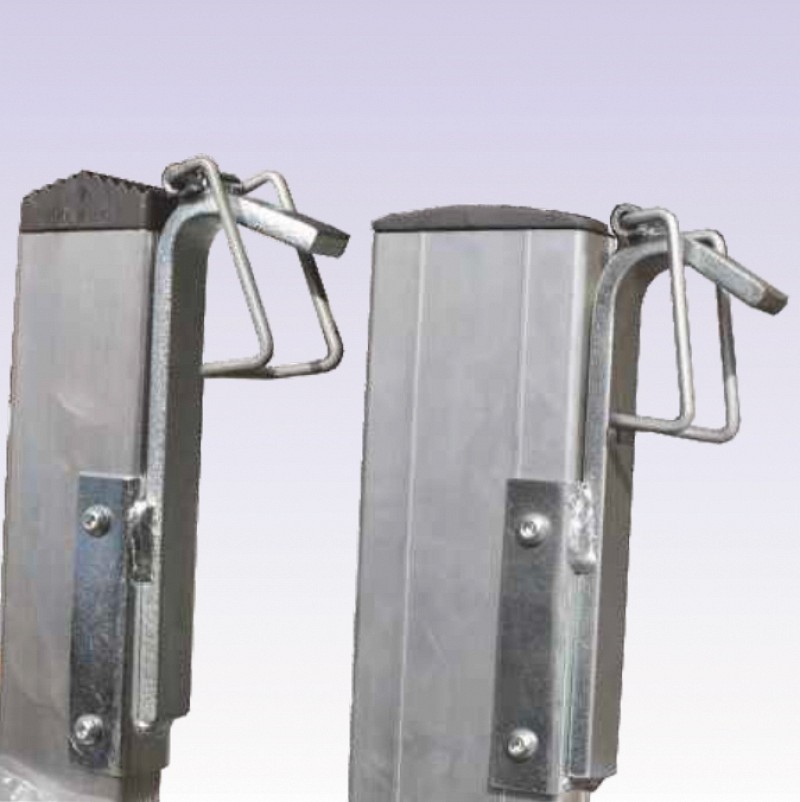

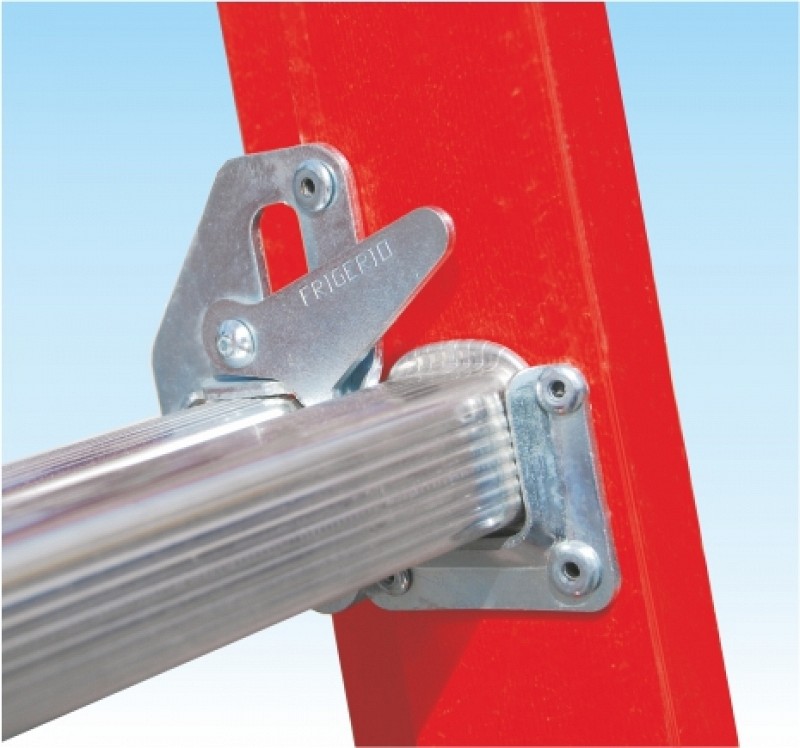

Sections held in place by steel hooks with safety lock

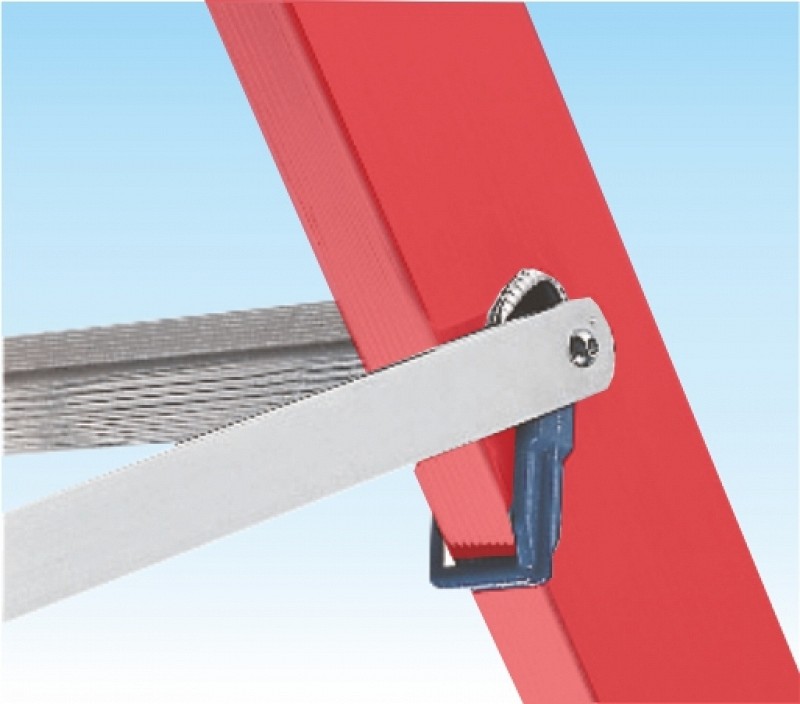

Safety spacer bars in aluminium, adjustable, allowing combination use of the ladder on height differences and prevents sudden opening or closure even when used as a stand over the permitted height

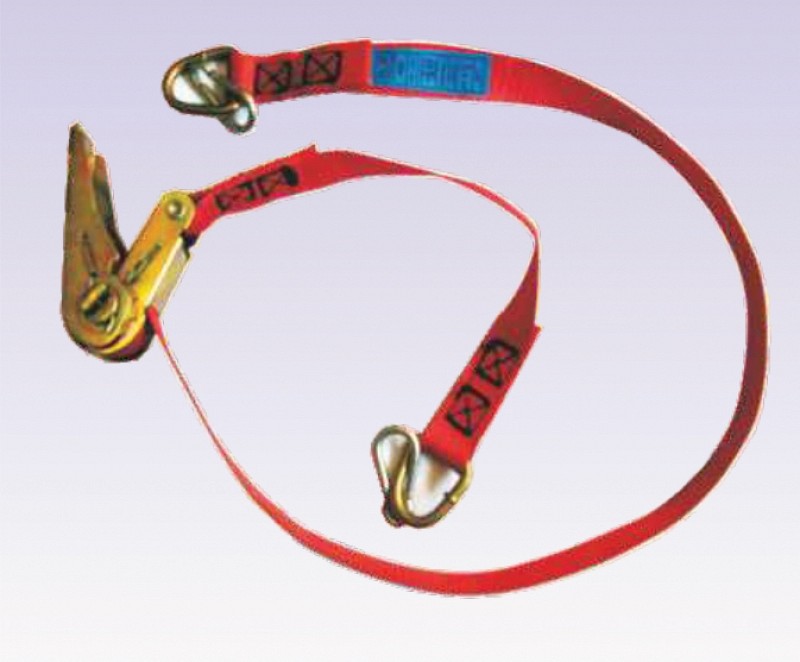

Nylon safety strap to prevent ladder from spreading apart

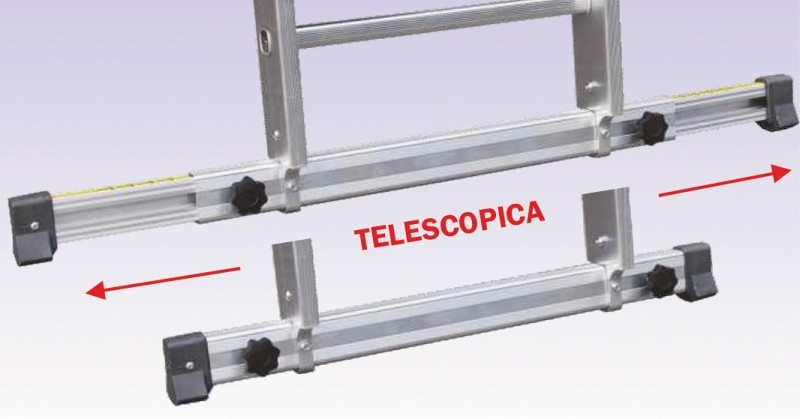

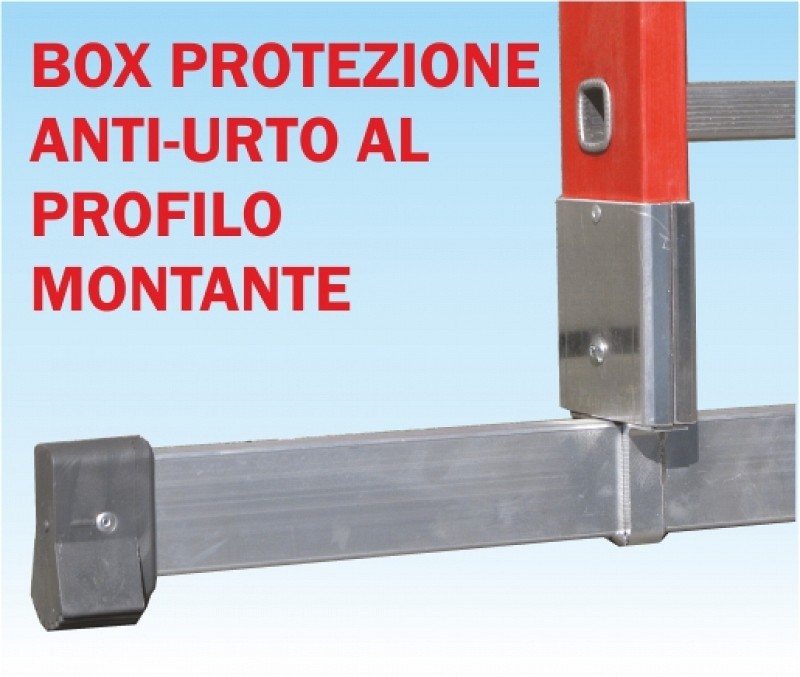

Stabiliser base in aluminium with protective box on the impact-proof profile allowing rapid assembly and dismantling

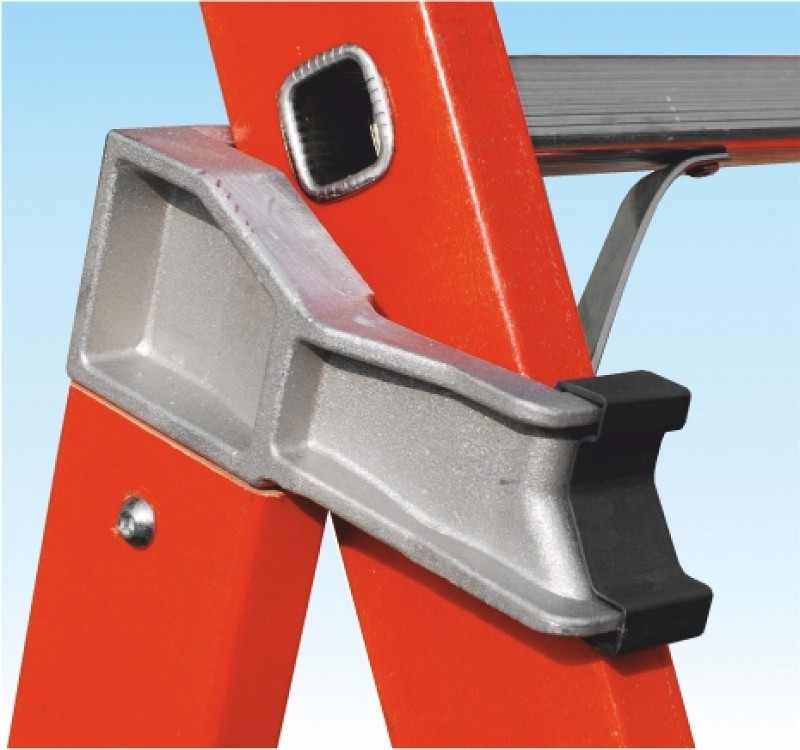

Reinforced anti-impact upper and lower ends with galvanized steel ribs
Strong heat-shrink wrapping 80 micron
Equpped with instructions for use

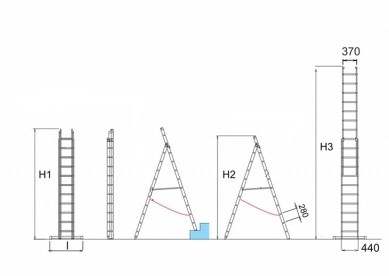

Total steps n°	Regulation Normative	Capacity kg.	Upright mm	Length when folded H1 m	Trestle height H2 m	Full Length H3 m	Base width I cm	Width section 1°- 2° cm.	Weight kg.	Article No.
8+8	EN 131	150	58 x 26	2,42	2,29	4,08	80	38/45	16	814508
9+10	EN 131	150	78 x 26	2,98	2,82	4,94	90	38/45	19	814510
11+12	EN 131	150	78 x 26	3,54	3,35	6,06	100	38/45	23,4	814512
13+14	EN 131	150	78 x 26	4,1	3,89	7,18	110	38/45	27	814514
16+16	EN 131	150	95 x 26	4,64	4,39	8,28	120	38/45	31	814516
