Aluminum two-sided stairs with platform 7280

Aluminum two-sided stairs with platform 7280

Code: 827203

Brand: Frigerio

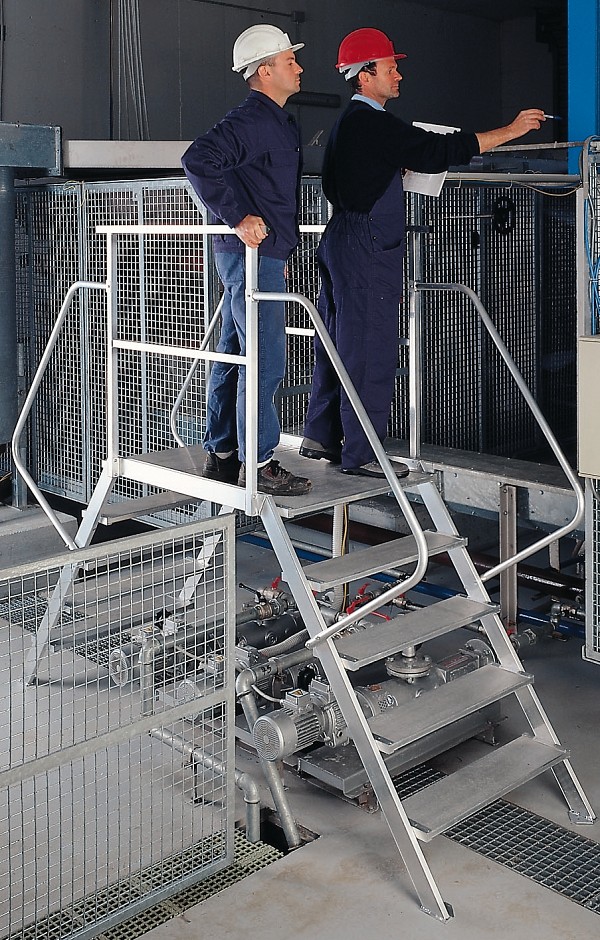

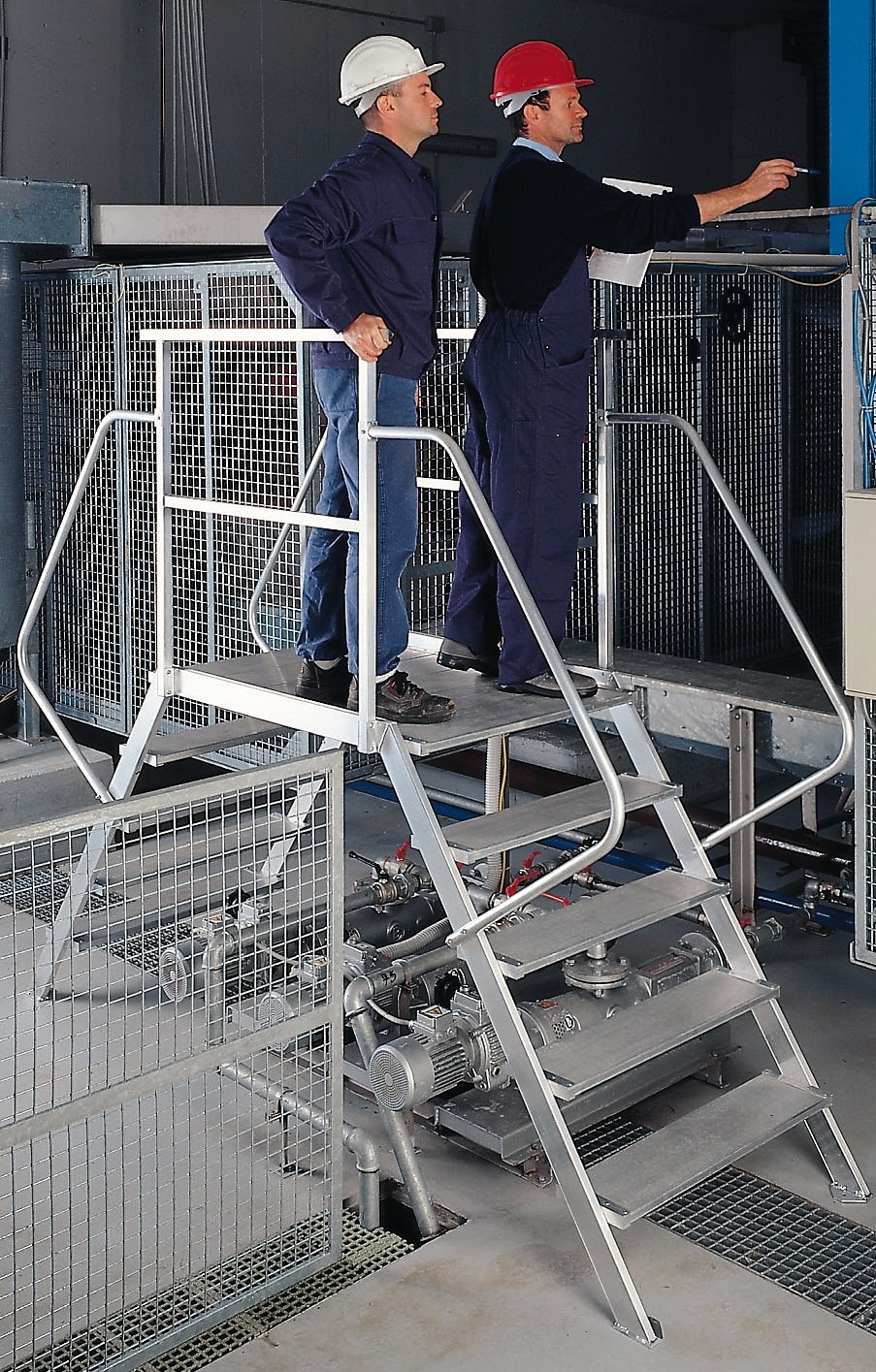

Double-sided aluminum stairs intended for installation in position. Designed to overcome floor barriers. The platform fenced with a safety fence ensures easy use and safe work.

Number of rungs:

Reset options

Availability: 10 do 14 dni

Price:

from 1.864,28 €

Add to cart

You have a question about this product?

More details
Specifications

Ladder 7280 with 800 mm. wide ramp

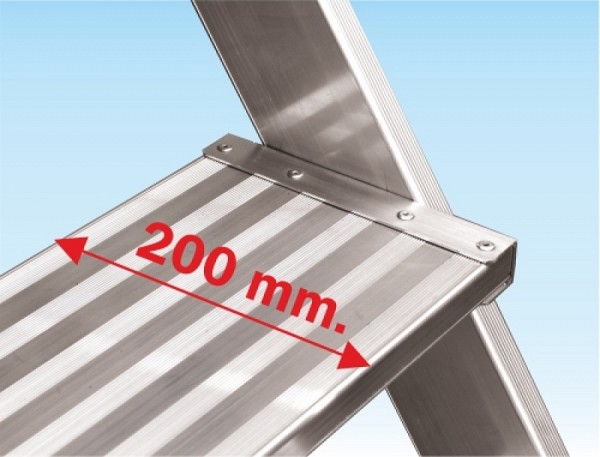

Non-deformable alloy steps with non-slip surface: depth 200 mm
Wide bridge platform with non-slip surface: depth 800 mm

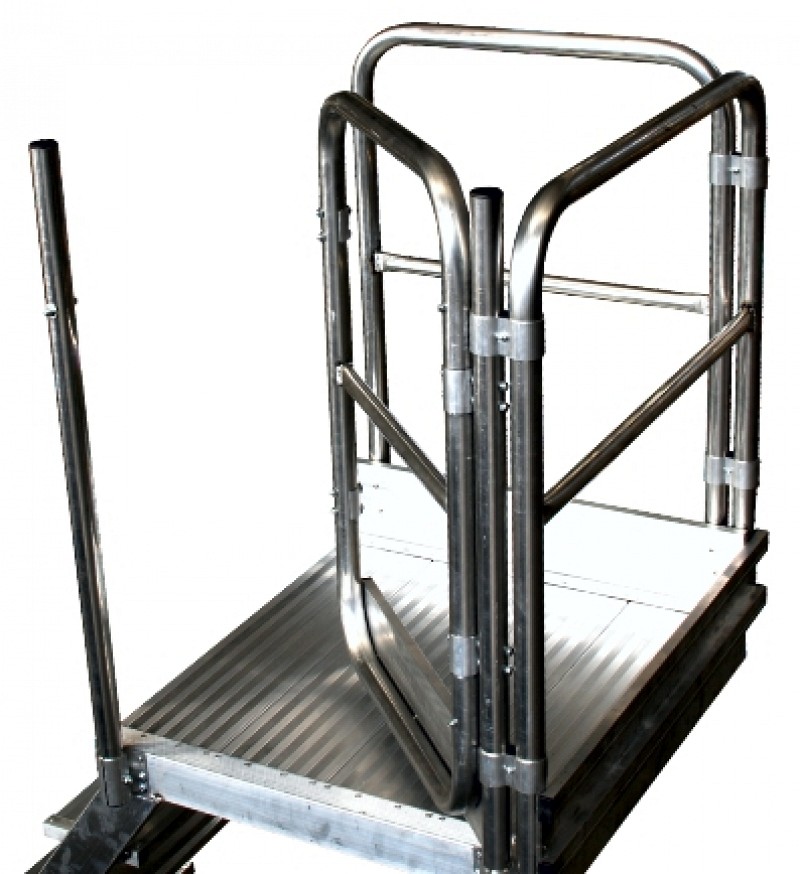

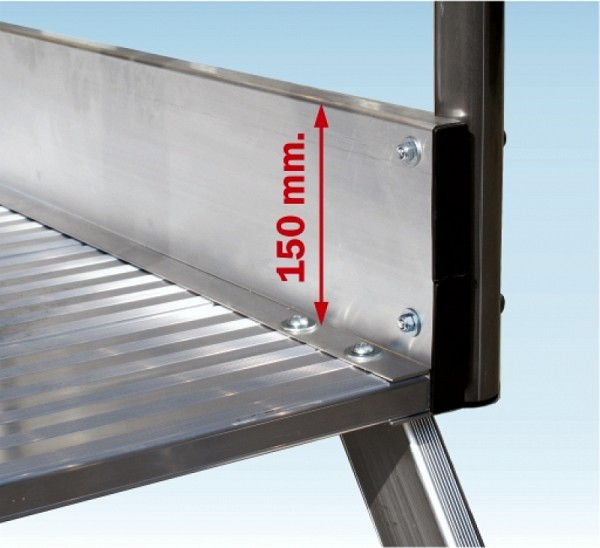

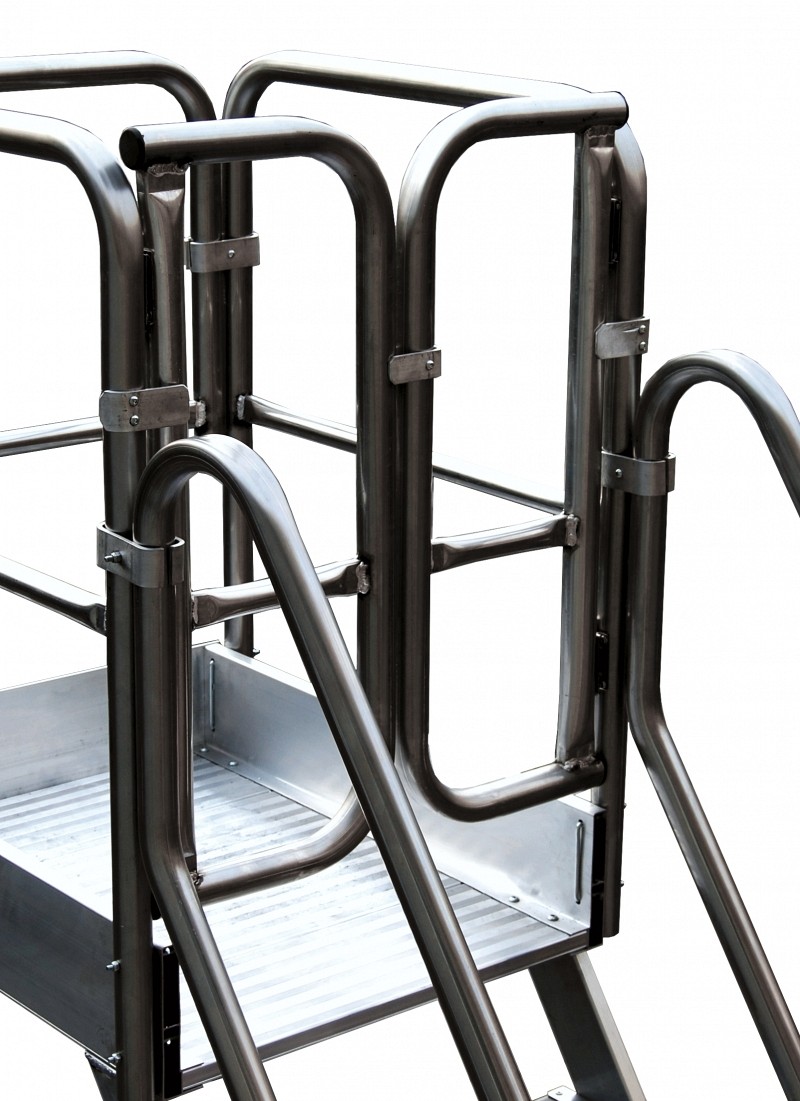

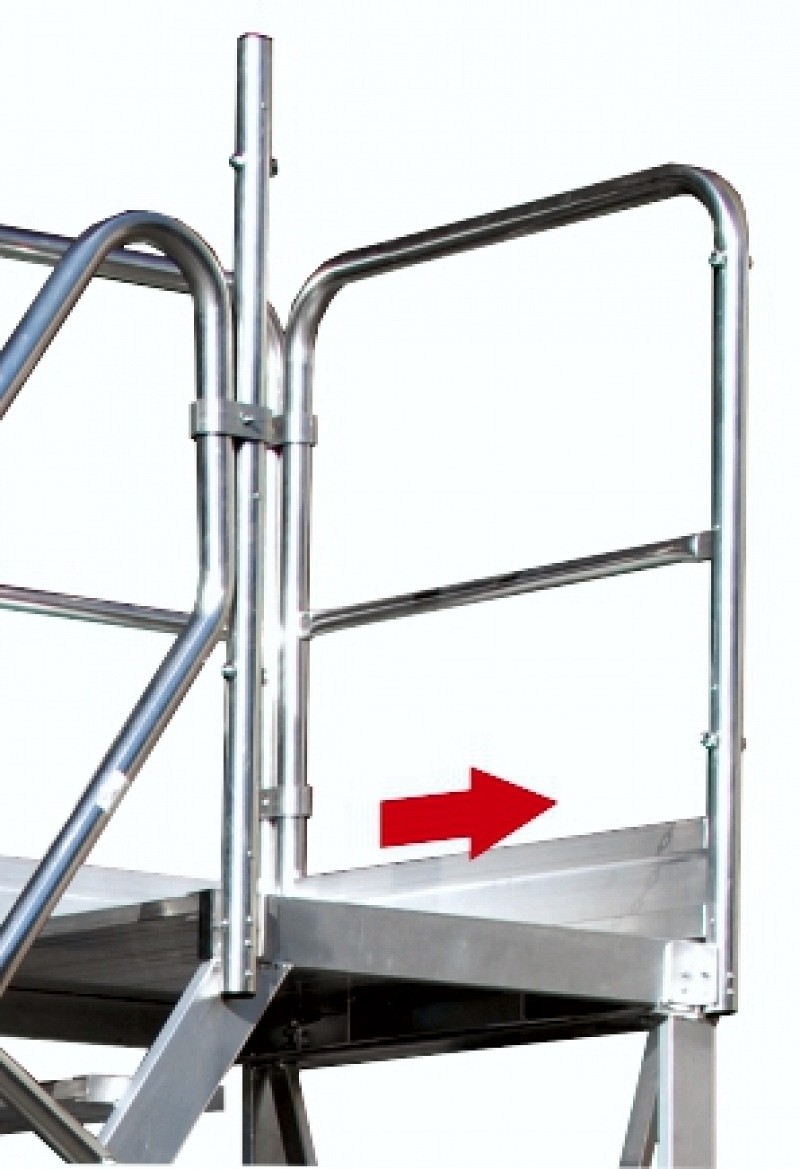

Removable railing on the platform, 1 m high, complete with protective knee cross-beams and toeboard 15 cm

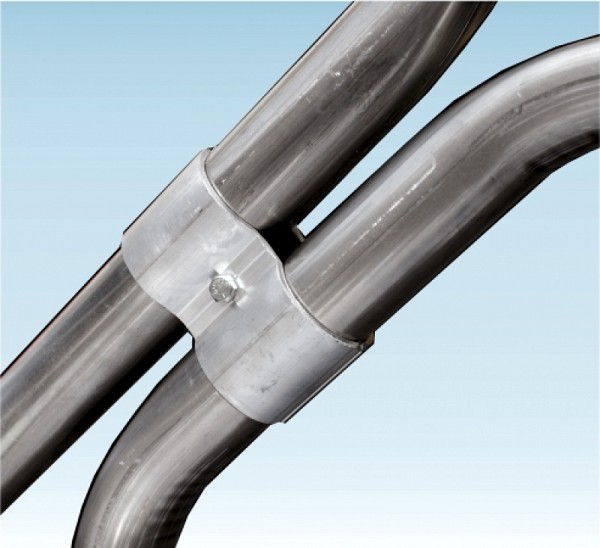

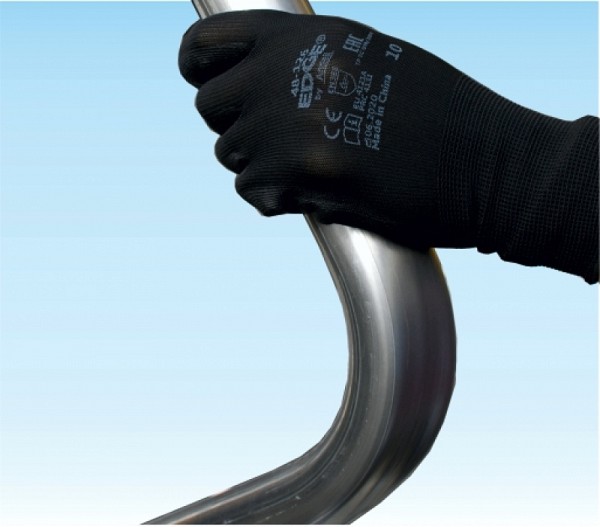

Double removable handrail made with round tube Ø 42 mm. in accordance with EN 14122
Uprights made of rectangular-section tubing with rounded scratch-protection corners

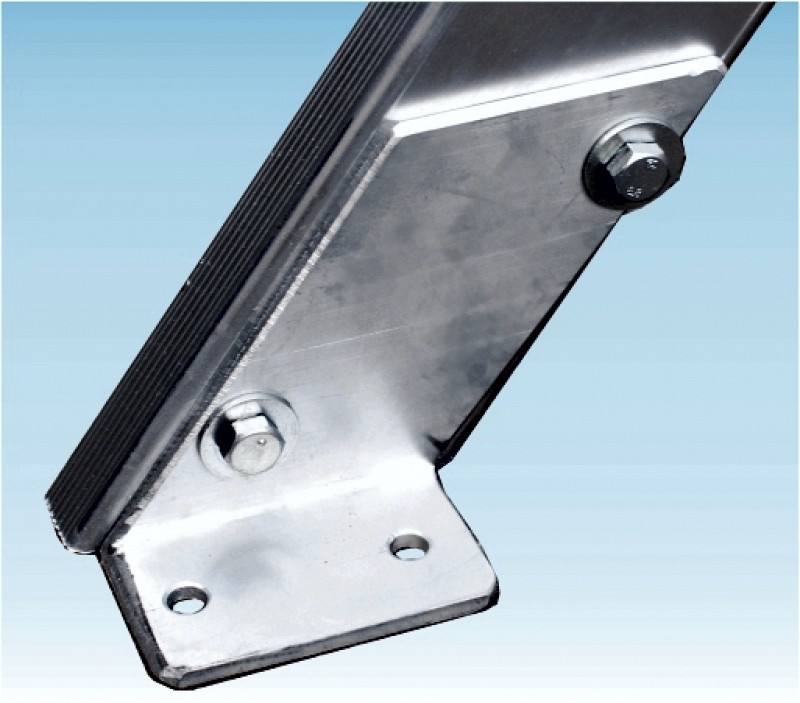

Ladder with fastening plates for anchorage to the ground
Ladder inclination: 55°

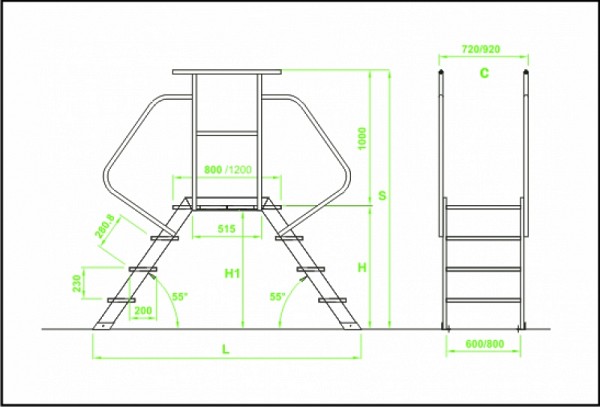

Stairs height S m	Platform height H m	Platform height H1 m	Useful worknig height m	Length L m	Length L2 m	Stairs width C m	Platform dimensions cm	Weight kg	Article No.
1,79	0,69	0,65	2,69	1,67	1,43	0,92	80 x 80	33,5	827203
2,02	0,92	0,88	2,92	1,99	1,72	0,92	80 x 80	38,4	827204
2,25	1,15	1,11	3,15	2,31	2,08	0,92	80 x 80	43,7	827205
2,48	1,38	1,34	3,38	2,63	2,40	0,92	80 x 80	51,0	827206
2,71	1,61	1,57	3,61	2,95	2,72	0,92	80 x 80	56,3	827207
2,94	1,84	1,80	3,84	3,84	3,04	0,92	80 x 80	61,6	827208
3,17	2,07	2,03	4,07	3,60	3,36	0,92	80 x 80	70,2	827209
