Aluminum stairs with guardrail and platform 7348

Aluminum stairs with guardrail and platform 7348

Code: 827303

Brand: Frigerio

Aluminum stairs with a platform for easy access to the height, allow easy access and attachment to the position. The stairs are equipped with a safety railing, which ensures users easy and safe use.

Number of rungs:

Reset options

Out of stock

Price:

from 980,37 €

Add to cart

You have a question about this product?

More details
Specifications

Ladder 7348 with 800 mm. wide ramp

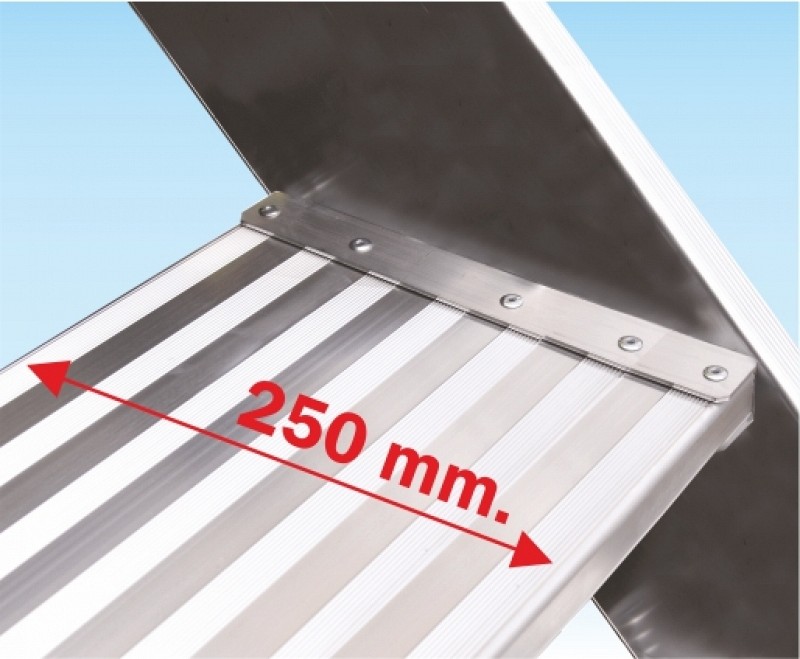

Non-deformable alloy steps with non-slip surface: depth 250 mm
Uprights made of rectangular-section 95 x 25 mm tubing up to 14 steps with rounded scratch-protection corners
Uprights made of rectangular-section 200 x 25 mm tubing from 15 to 19 steps with rounded scratch-protection corners

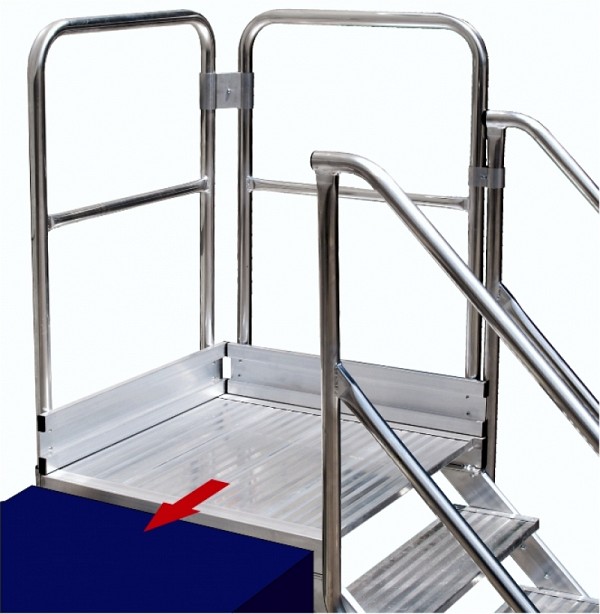

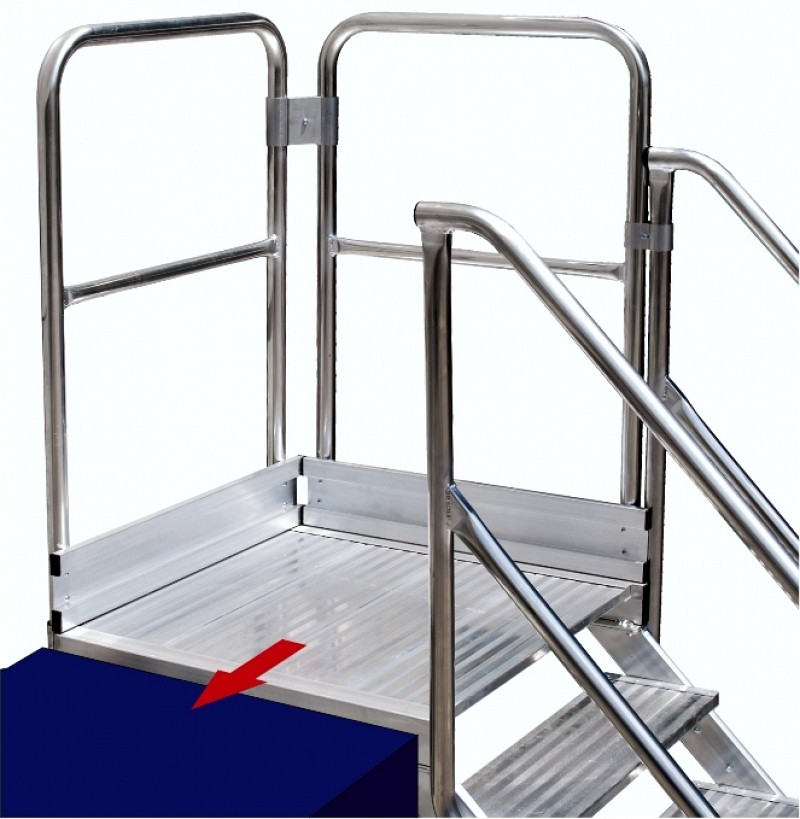

Double removable handrail made with round tube Ø 42 mm. in accordance with EN 14122

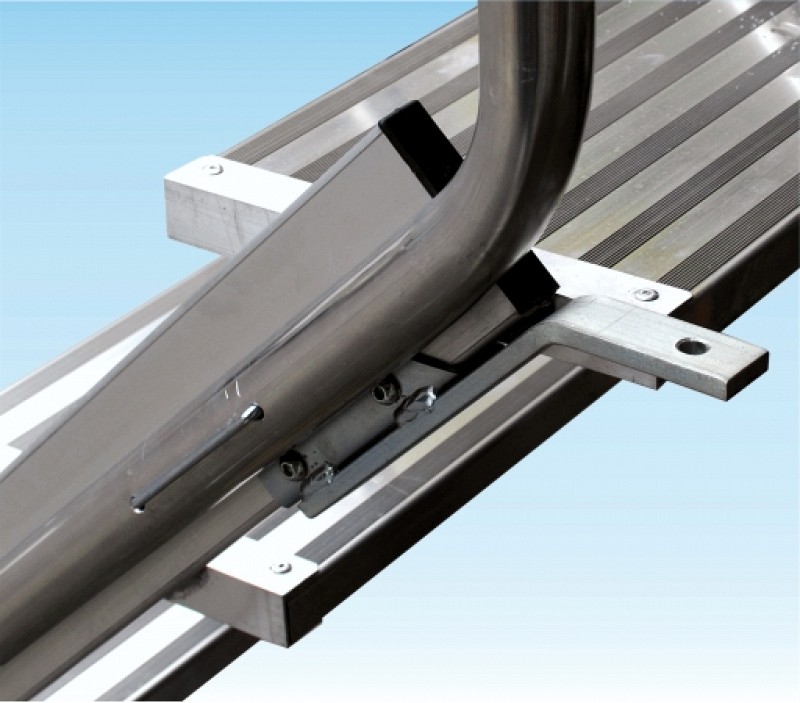

N°2 fastening plates in galvanised steel for upper floor anchorage
Tilting feet that autonomously adapt to the ground slope, anchored to the ground
Ladder inclination: 45°

Stairs height S m	Landing height H m	Length L m	Width B m	Stairs width C m	Weight kg	Article No.
1,62	0,62	0,76	0,8	0,92	16	827303
1,82	0,82	0,96	0,8	0,92	20,1	827304
2,02	1,02	1,16	0,8	0,92	24	827305
2,22	1,22	1,36	0,8	0,92	28	827306
2,42	1,42	1,56	0,8	0,92	33,9	827307
2,62	1,62	1,76	0,8	0,92	37,8	827308
2,82	1,82	1,96	0,8	0,92	42,1	827309
3,02	2,02	2,16	0,8	0,92	46,2	827310
3,22	2,22	2,36	0,8	0,92	51,9	827311
3,42	2,42	2,56	0,8	0,92	56	827312
3,62	2,62	2,76	0,8	0,92	60,1	827313
3,82	2,82	2,96	0,8	0,92	64,1	827314
4,02	3,02	3,16	0,8	0,92	79,3	827315
4,22	3,22	3,36	0,8	0,92	84	827316
4,42	3,42	3,56	0,8	0,92	88,5	827317
4,62	3,62	3,76	0,8	0,92	93,6	827318
4,82	3,82	3,96	0,8	0,92	97,4	827319
