Professional Al ladder with platform and guardrail 6046

Code: 824604

Brand: Frigerio

Professional ladder with platform, railing, and tool shelf and safety lock (from 6th bar onwards) to prevent unwanted opening.

Ladder shape: ladder with platform

Ladder type: aluminum

Number of rungs:

Reset options

In Stock

Price:

from 508,18 €

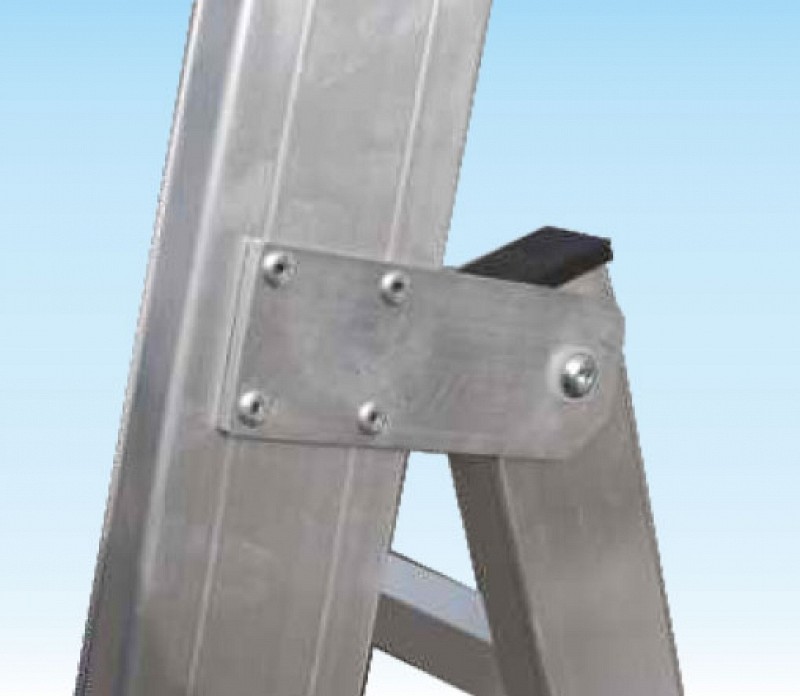

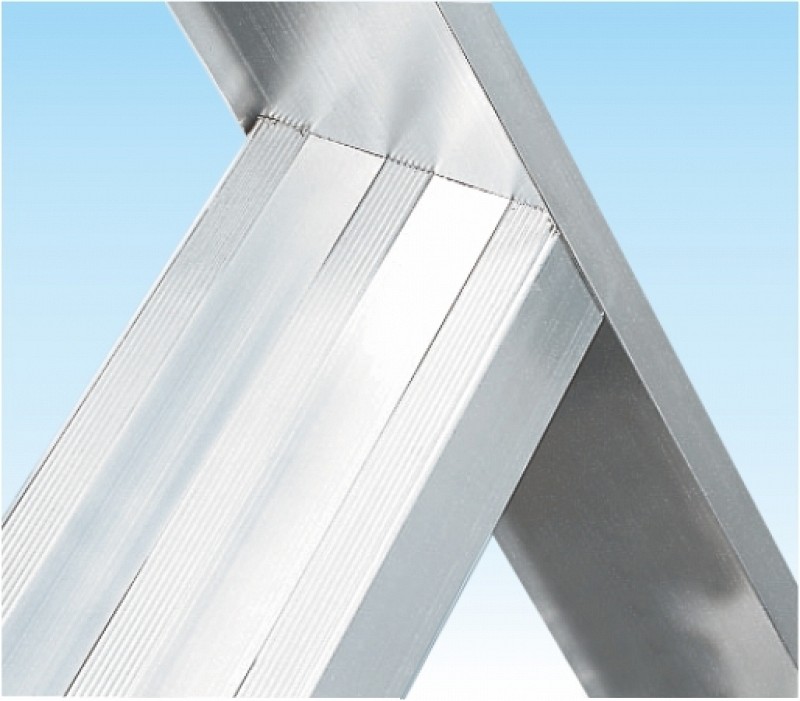

Non-slip step 83 mm in depth strongly welded to the upright in a concealed corner
80 x 23 mm double-core filled boxed upright

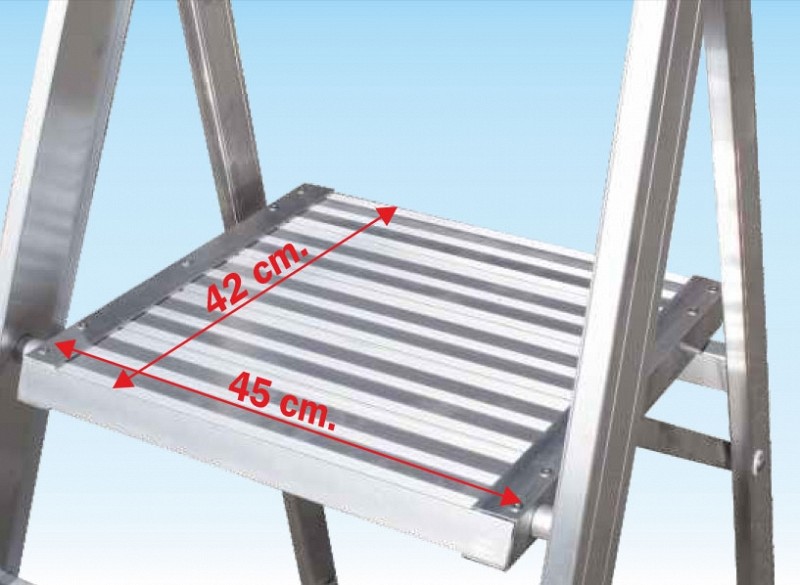

Over size aluminium platform dimensions 420 x 450 mm with automatic safety spreader brace to prevent closing

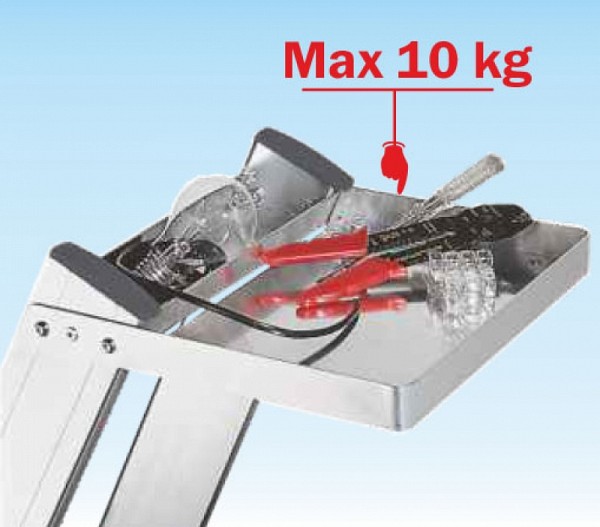

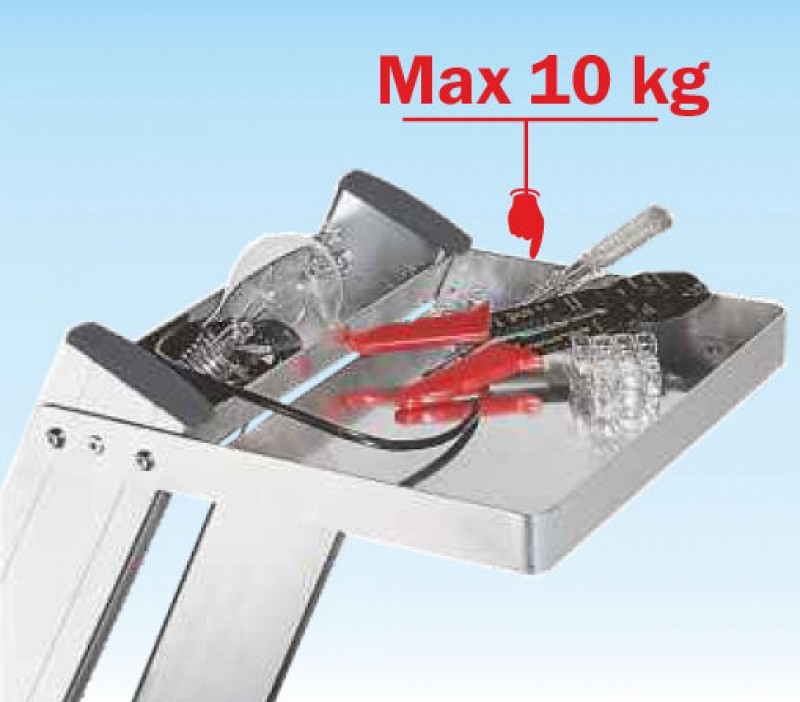

Large storage aluminium welded tool tray dimensions cm. 8 x 43 and 4 cm. deep
Large additional tool tray dimensions mm. 200x460

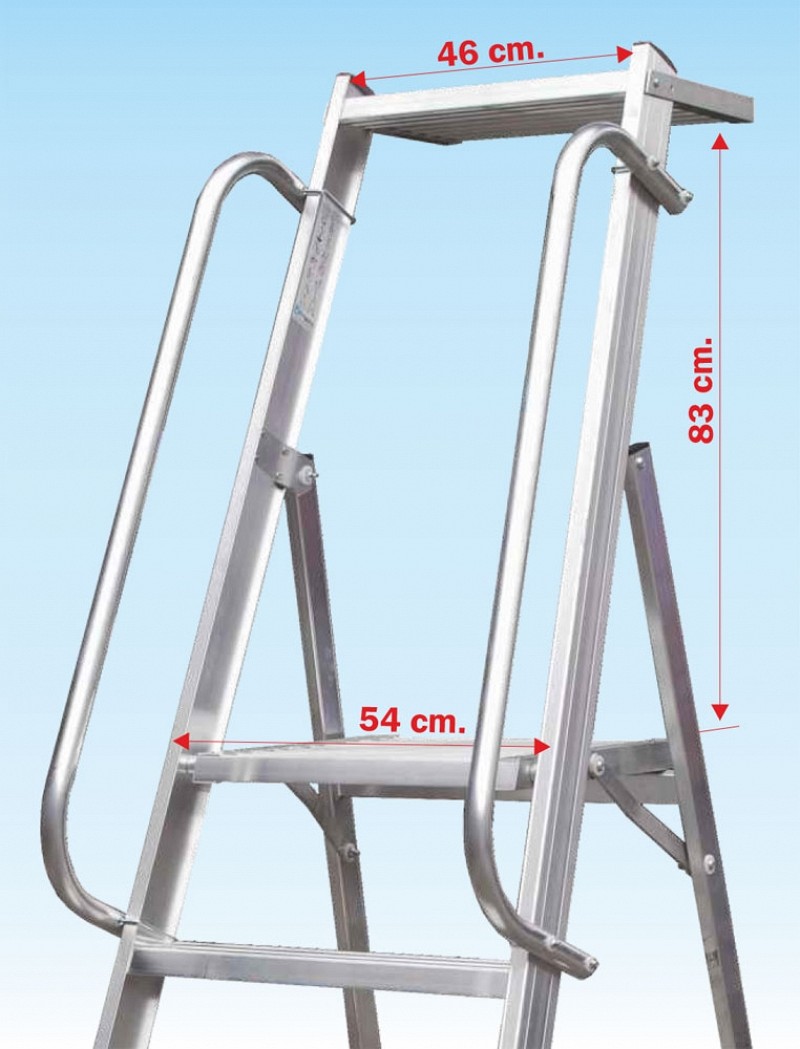

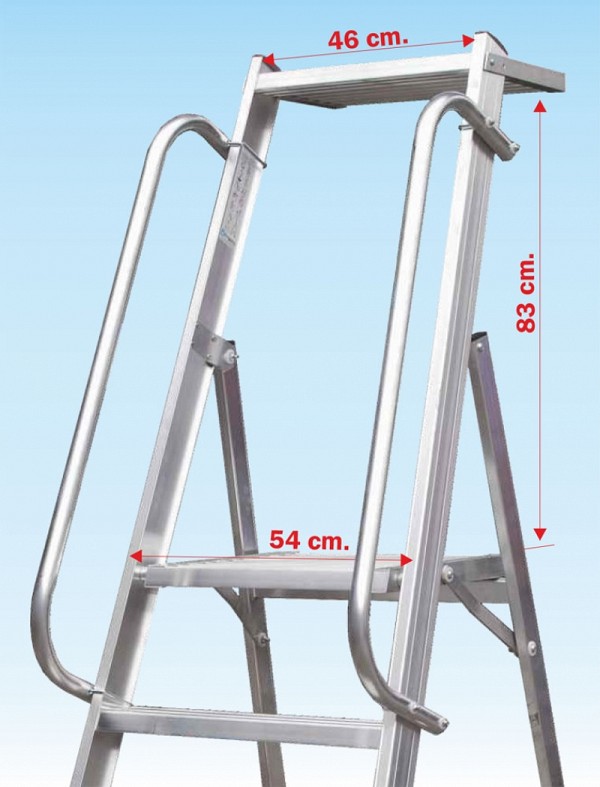

83 cm high safety railing

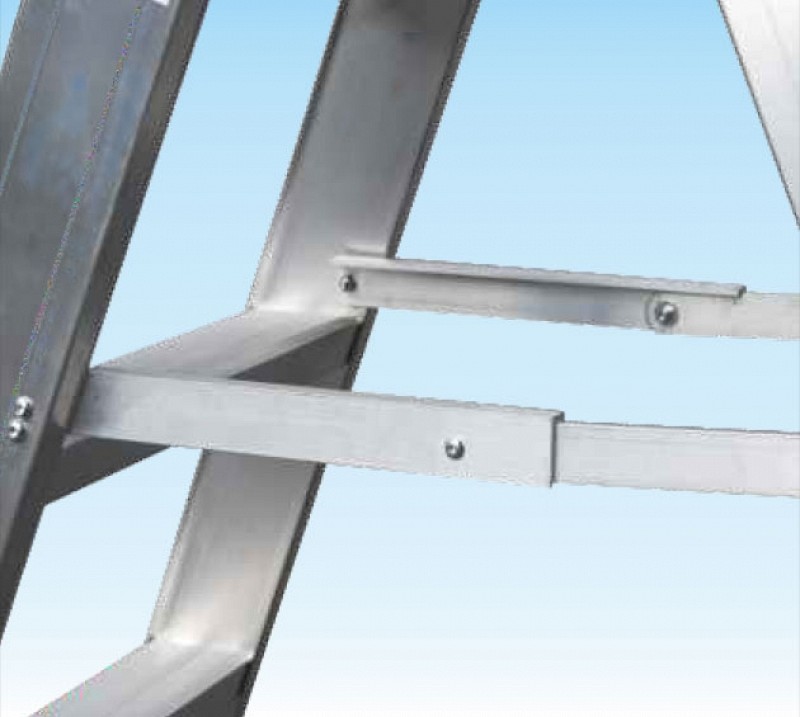

Automatic spacer bars in aluminium with anti-opening and anti-closure safety device (starting from 6046/6 onwards)

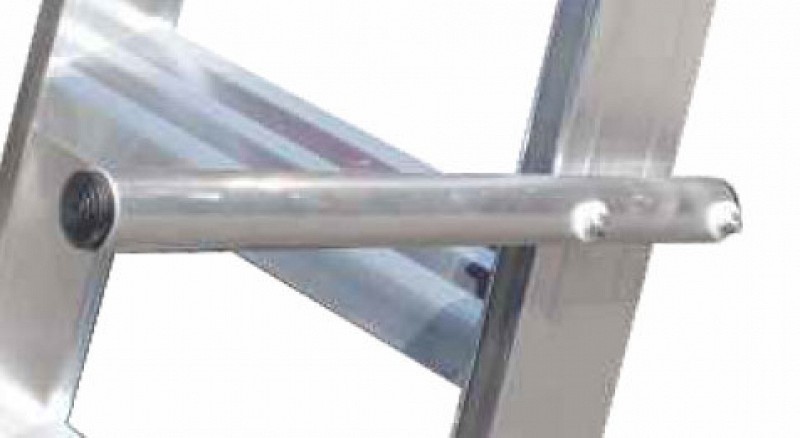

Handrail Ø 32 mm. on both sides
Reinforced anti-impact base with welded anti-rust aluminum ribs

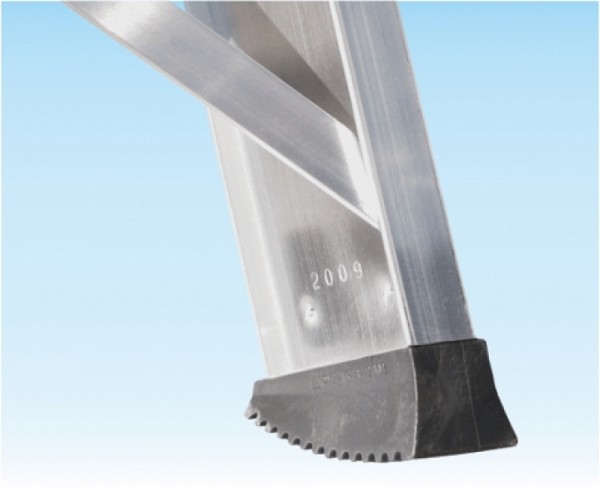

Increased anti-detachment feet with anti-slip support surface
Strong heat-shrink wrapping 80 micron
Year of manufacture and manufacturer's trademark
Equpped with instructions for use

Total steps n°	Length L m	Platform height H m	Useful working height platform + 2 m	Ladder width B m	Gauge A m	Weight kg	Article No.
4	1,85	0,93	2,93	0,65	0,99	12	824604
5	2,1	1,16	3,16	0,67	1,15	13	824605
6	2,35	1,39	3,39	0,7	1,3	14	824606
7	2,6	1,62	3,62	0,72	1,46	15	824607
8	2,85	1,86	3,86	0,75	1,61	16	824608
9	3,1	2,09	4,09	0,77	1,76	17,3	824609
10	3,35	2,32	4,32	0,8	1,92	18,5	824610
