Coil hook without counterweight compensation CKO

Coil hook without counterweight compensation CKO

Brand: P TEAM

Coil hook type CKO without counterweight compensation. The most frequent use of a C-Hook is for the safe and protective lifting and handling metal coils or rolls. This coil hook is intended for transporting narrow coils of up to 300mm width. Type CKO C hook is designed with tilting angle at the prong tip for putting down and erecting coils.

Out of stock

Send inquiry

More details

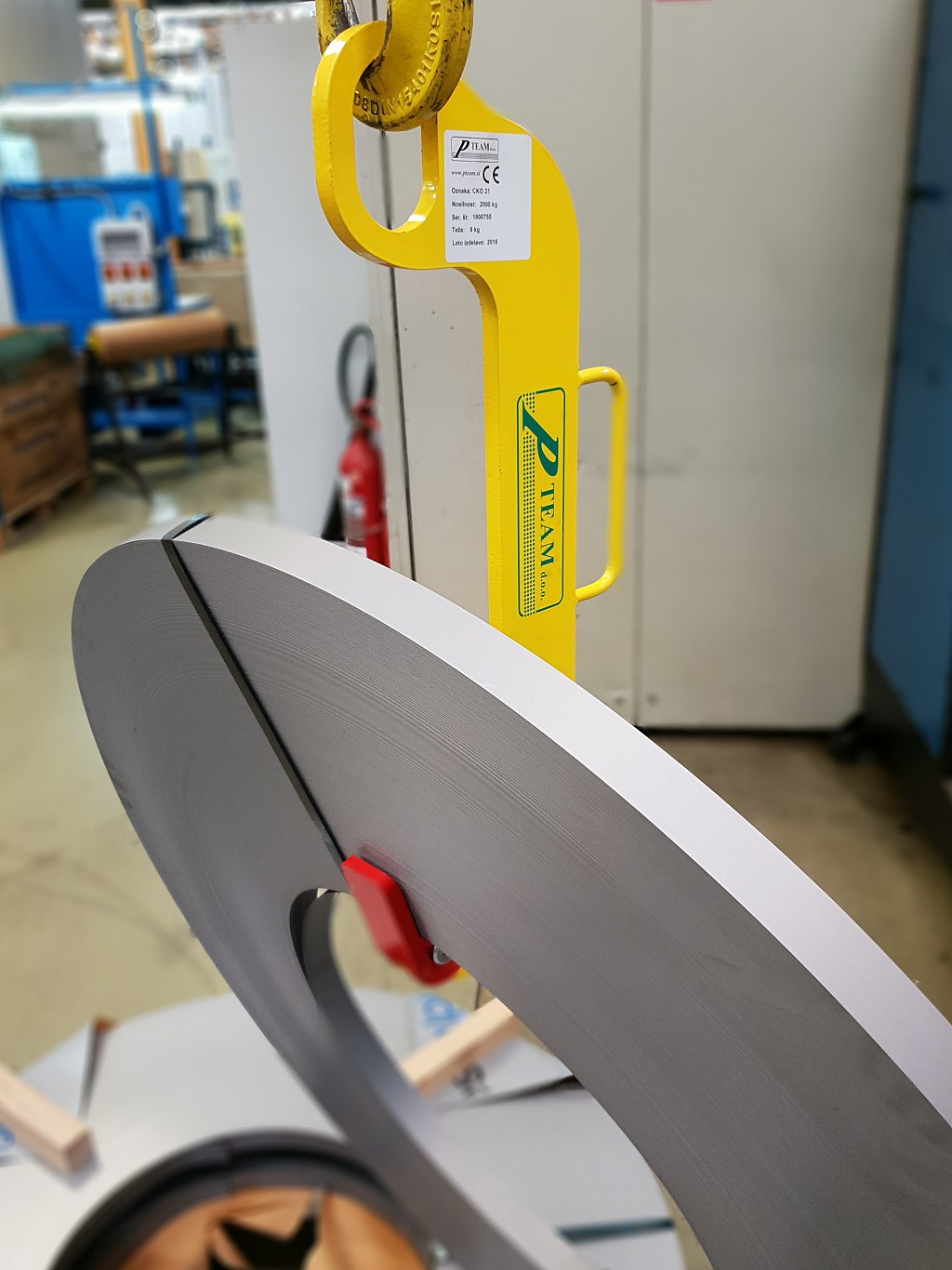

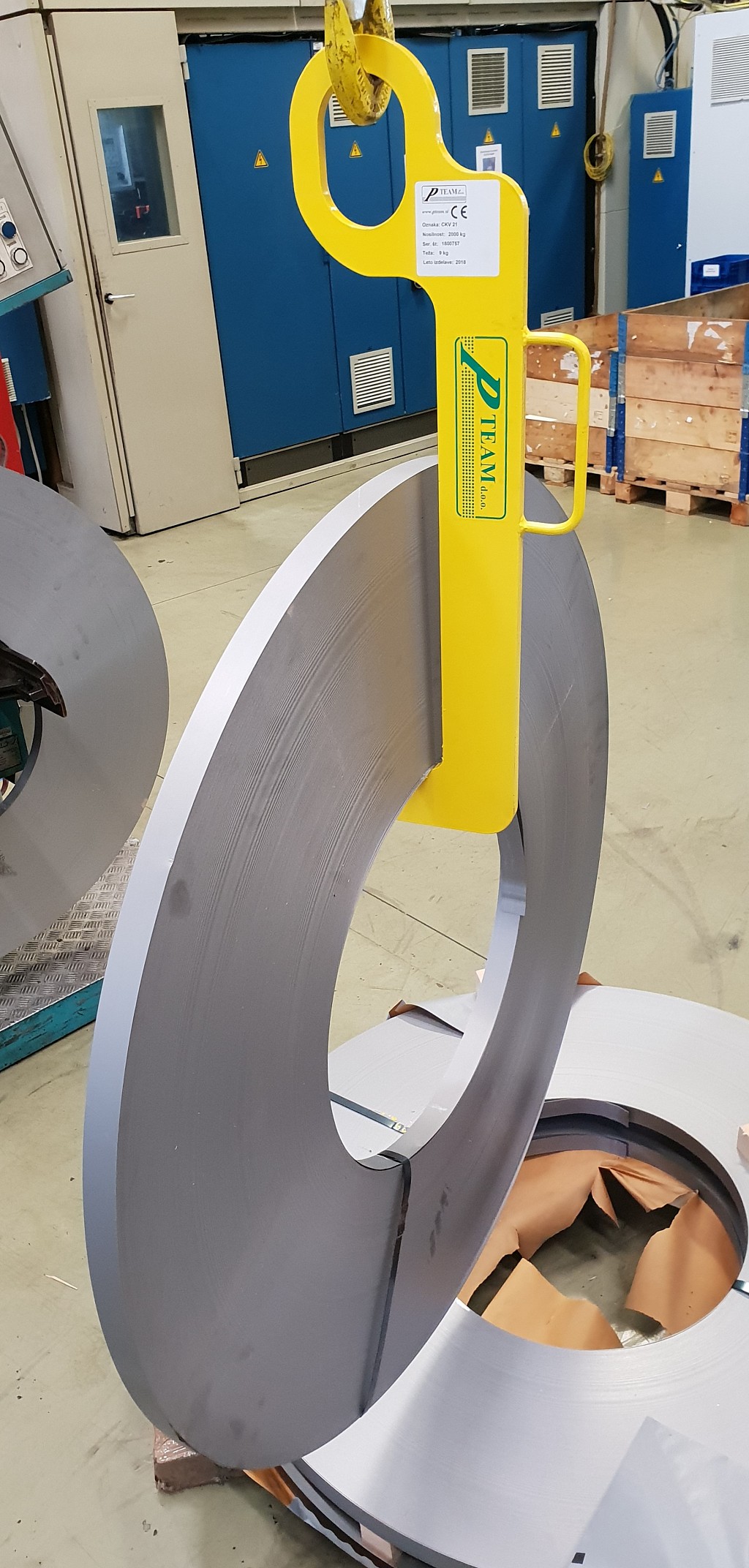

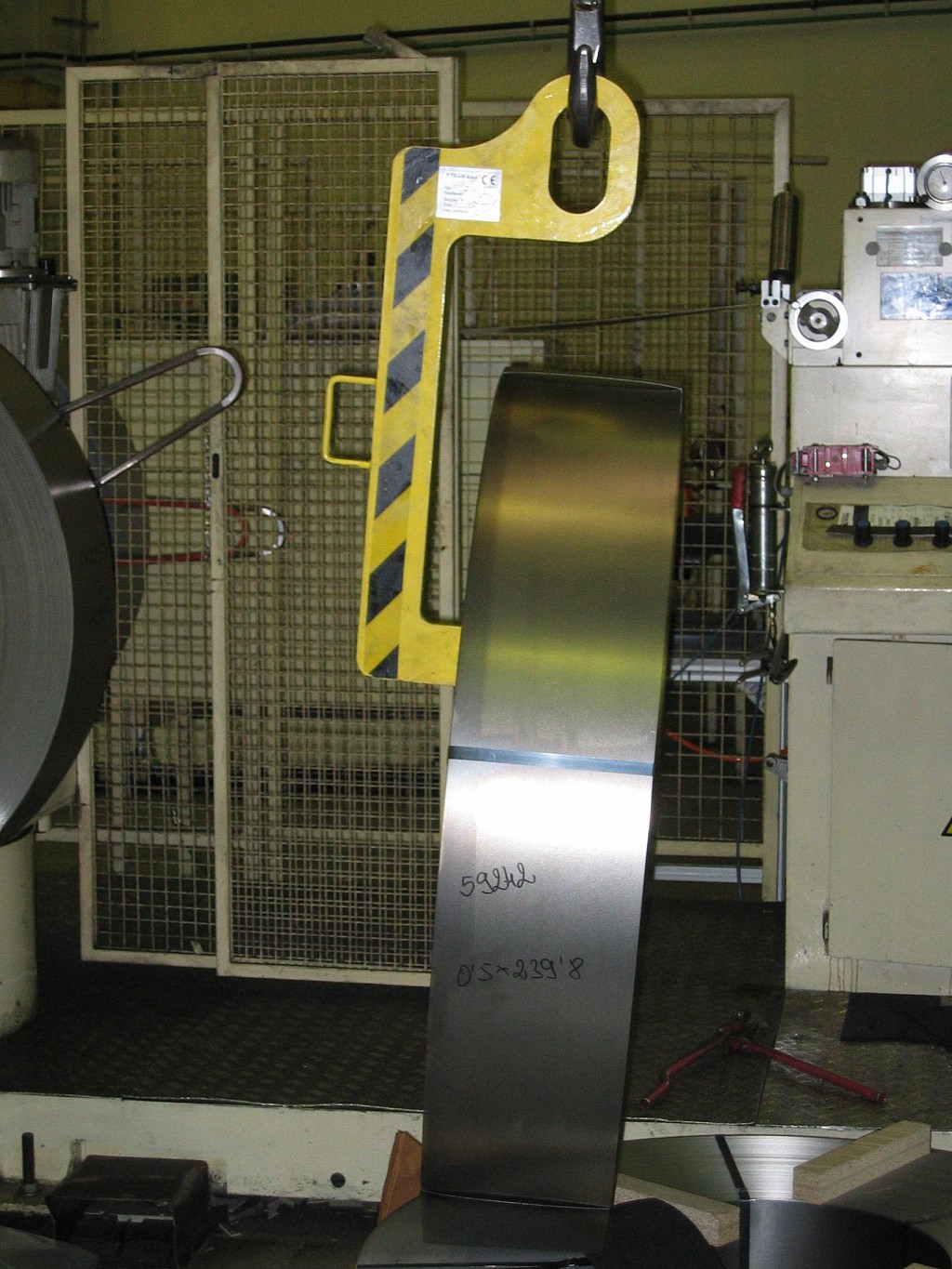

The crane operator controls the lifting process by simply inserting the lower leg into the center of the coil. Handles make it easier for the operator to mount the coils. The bottom carrying arm's tapered design both makes it easier to enter the coil and lessens coil damage. Unloaded, coil hooks without counterweight compensation are crooked but have a very low dead weight. This makes it simple to hold the C-hook in the scales by hand and guide it safely into the coil eye. C-Hooks are manufactured in Slovenia and have a safety factor of 4:1.

Warranty: 1 year

Images of the products are symbolic.

The table presents the technical characteristics of versions of the Coil Hook type CKO, with different load limits.

Art. No.	Working load limit (kg)	A (mm)	B (mm)	Weight (kg)	Art. No.
CKO 105	1000	500	500
CKO 110	1000	1000	500	16.9	966721
CKO 120	1000	2000	500	16.9	966722
CKO 210	2000	1000	500	9	966703
CKO 215	2000	1500	500	17	966715
CKO 220	2000	2000	500	17	966704
CKO 225	2000	2500	500	18.5	966705
CKO 230	2000	3000	500	21	966706
CKO 330	3000	3000	500		966710
