Eye nut FE.DSS

Code: 463701

Brand: P TEAM

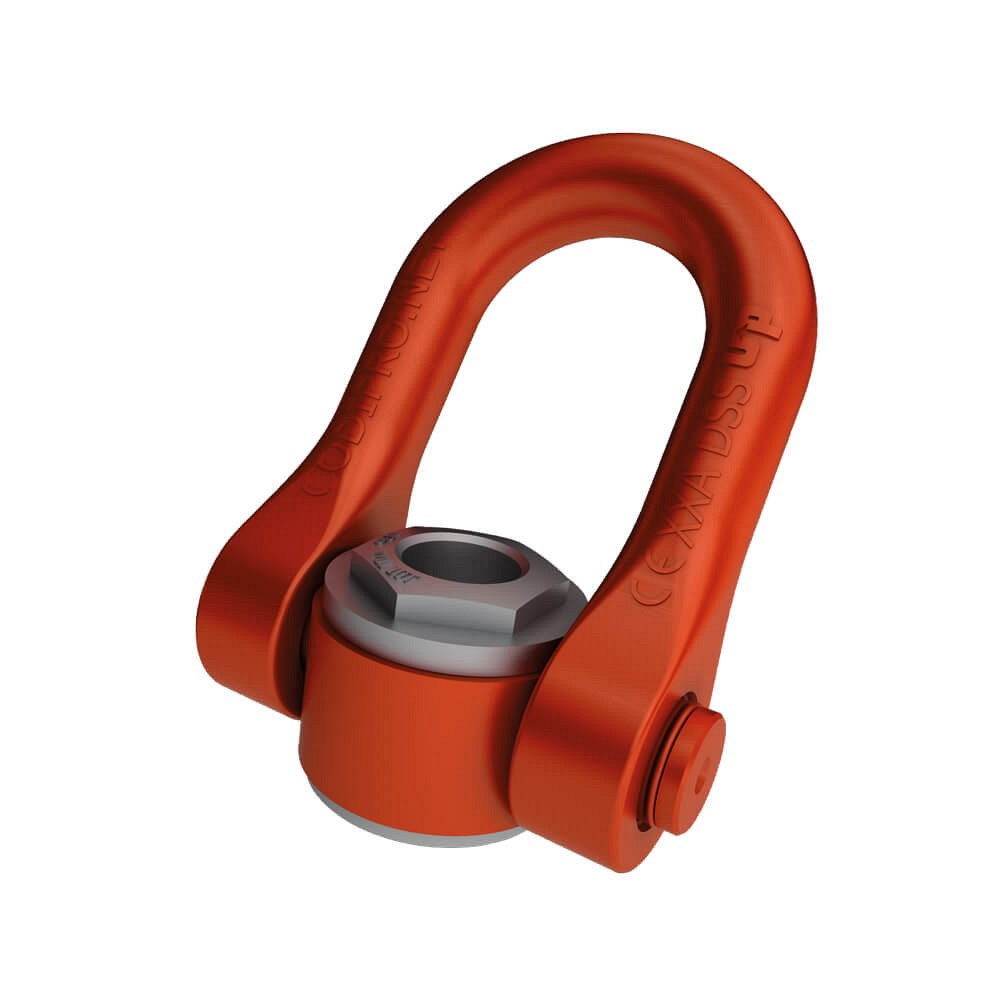

The FE.DSS eye nut is a double swivel hoist ring designed for safely lifting loads at various angles. The bail on this double swivel eye nut can pivot 180°, and the body can rotate 360°, allowing lifting from any direction. Upon lifting, this flexibility ensures that the swivel eye nut completely aligns with the lifting chain. The double swivel function of the FE.DSS eye nut makes it ideal for safe and efficient lifting and maneuvering of loads in different directions.

Thread:

Working load limit:

Reset options

In Stock

Price:

from 66,61 €

Add to cart

You have a question about this product?

More details
Specifications

FE.DSS double swivel hoist ring can pivot 180°, and rotate 360°, making it possible to lift from any direction. This flexibility ensures that the swivel ring aligns completely with the lifting chain. The FE.DSS eye nut is approved for all lifting configurations from 0° to 90° and can be used in a temperature range from -20°C to +200°C. It is manufactured in accordance with the Machinery Directive 2006/42/EC and carries the CE mark. It complies with the EN 1677-1 standard and has a safety factor of 4:1, ensuring safety and reliability. We offer the DSS product in both male-double swivel eye bolt and female-double swivel eye nut forms. Compared to DSR type products, DSS type products have a higher load capacity.

Warranty: 1 year
Warrning: This device is not suitable for rotation during loading!
Caution: When using eye nuts at an angle, their load capacity is reduced and may be lower than the declared capacity. For specific load capacity values when lifting at different angles, please refer to the table in the specifications section above.

Images of the products are symbolic.

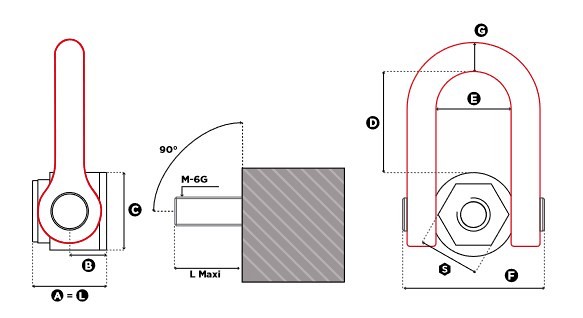

The table presents eye nuts type FE.DSS, their dimensions and other technical characteristics.

Thread version	Working load limit (t)	Thread length L1 (mm)	Torque (Nm)	S (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	Weight (kg)	Art. No.
M 24	4,5	66	160	50	66	31	70	98	73	149	33	5,1	463701
M 27	5,2	66	200	50	66	31	70	98	73	149	33	5,1	463702
M 30	7,5	66	250	50	66	31	70	98	73	149	33	5,1	463703
M 33	8	66	250	50	66	31	70	98	73	149	33	5,1	463704
M 36	10	66	320	50	66	31	70	98	73	149	33	5,1	463705
M 39	12	89	320	60	89	38	95	123	91	182	45	10	463706
M 42	13	89	400	60	89	38	95	123	91	182	45	10	463707
M 45	14,5	89	400	60	89	38	95	123	91	182	45	10	463708
M 48	17	89	600	60	89	38	95	123	91	182	45	10	463709
M 52	19	89	600	60	89	38	95	123	91	182	45	10	463710
