Crane GD

Code: 969203
Brand: P TEAM

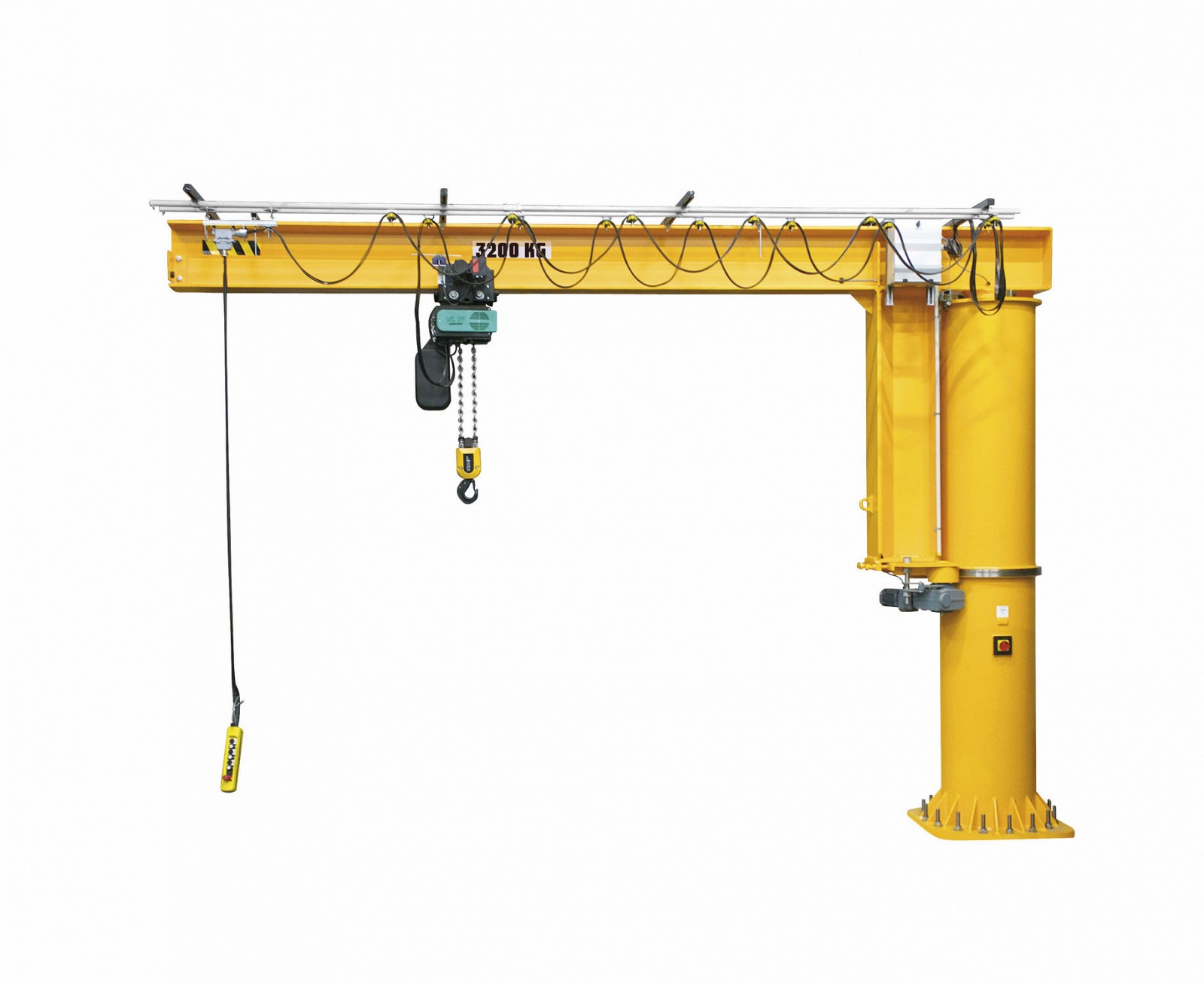

Full-rotation pillar crane type GD with an underbraced beam, intended for intensive use. The crane is appropriate for indoor or outdoor use. The design allows for a complete 360° rotation. An optional engine can assist in the rotation. Additionally, the installation of a hoist motor for directional control is possible with this model.
Read more
Availability: 4 do 5 tednov
Price:
from 13.798,20 €

The crane features a standard underbeam clearance of 3 meters, which is adjustable to accommodate varying requirements, thereby modifying the overall height measurement accordingly. It is fixed to the floor with chemical anchors or anchor rods with foundation. Type GD crane offers a wide range of mechanical and electrical accessories, making it versatile and adaptable to various lifting and rotating requirements. The crane achieves a maximum hoisting speed of 16m/min. This product is protected with a 60-micron C2 polyester powder painting, ensuring durability.

The crane offers a wide range of accessories, including a hoist power supply cable, a lockable main switch and the choice for hot-dip galvanizing as anticorrosion protection. There is an option of banded polyurethane wheels, locking wheels or non-rotating wheels and a choice between an electric or manual hoist based on specific requirements. Additionally, users can opt for rotation stops to be welded onto the assembly and select a single or multiposition rotation lock. The crane offers versatile motorization options, with motorization on the main roller designed for indoor use or top-mounted motorization for outdoor applications. A 4-ring electrical collector is also available, enabling unlimited rotation.

  • Warranty: 1 year

Images of the products are symbolic.
