Images of the products are symbolic.
The table presents technical characteristics of clamp type TSP.
|
Model |
Working load limit kg |
Gripping area mm |
Weight kg |
Article No. |
|
TSP 0,5/200 |
500 |
0 – 200 |
15,0 |
893801 |
|
TSP 1,5/300 |
1.500 |
0 – 300 |
22,6 |
893802 |
|
TSP 3,0/300 |
3.000 |
0 – 300 |
41,7 |
893803 |
|

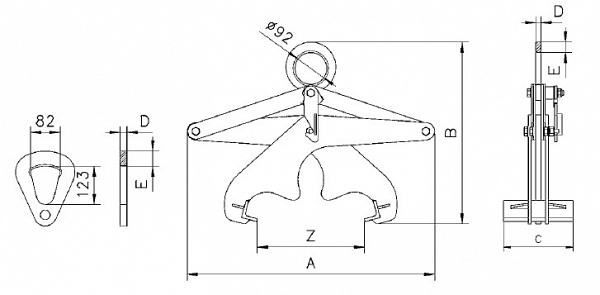

Model |
TSP 0,5/200 |
TSP 1,5/300 |
TSP 3,0/300 |
|
A, mm |
510 |
710 |
720 |
|
B min., mm |
390 |
495 |
525 |
|
B max., mm |
625 |
830 |
920 |
|
C, mm |
200 |
200 |
220 |
|
D, mm |
15 |
15 |
20 |
|
E, mm |
30 |
30 |
43 |
