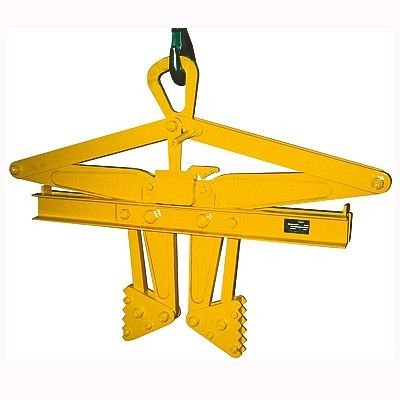

This product is ideal especially for wire coils and hollow bodies.
Images of the products are symbolic.
The table presents technical characteristics of clamp type PJN.
|
Model |
Working load limit kg |
Gripping area mm |
Weight kg |
Article No. |
|
PJN 0,1/420 |
100 |
220 – 420 |
17 |
893501 |
|
PJN 0,5/600 |
500 |
400 - 600 |
51 |
893502 |
|
PJN 1,0/600 |
1.000 |
400 – 600 |
53 |
893503 |
|
PJN 2,0/800 |
2.000 |
550 – 800 |
150 |
893504 |
|
PJN 3,0/800 |
3.000 |
550 – 800 |
175 |
893505 |
|
PJN 5,0/800 |
5.000 |
550 - 800 |
220 |
893506 |
|

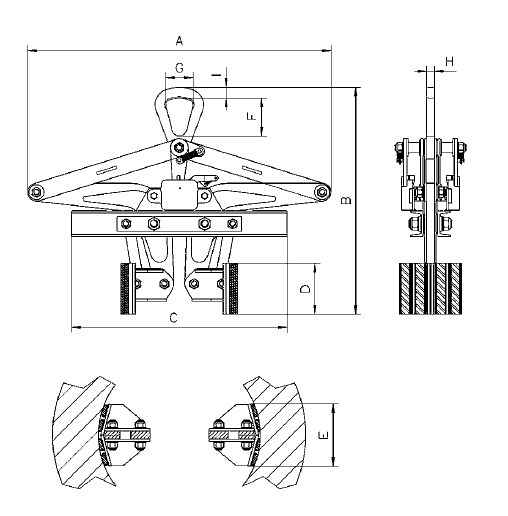

Model |
PJN 0,1/420 |
PJN 0,5/600 |
PJN 1,0/600 |
PJN 2,0/800 |
PJN 3,0/800 |
PJN 5,0/800 |
|
A, mm |
790 |
1.200 |
1.200 |
1.400 |
1.450 |
1.450 |
|
B, mm |
455 |
610 |
600 |
830 |
920 |
795 |
|
C, mm |
550 |
800 |
900 |
1.100 |
1.000 |
1.000 |
|
D, mm |
80 |
100 |
100 |
120 |
160 |
160 |
|
E, mm |
90 |
160 |
160 |
220 |
220 |
65 |
|
F, mm |
– |
– |
– |
124 |
151 |
151 |
|
G, mm |
Ø 60 |
Ø 92 |
Ø 92 |
83 |
107 |
107 |
|
H, mm |
15 |
15 |
15 |
30 |
30 |
35 |
|
I, mm |
22 |
30 |
30 |
42 |
42 |
42 |
