Clamp LPB

Code: 893401

Brand: P TEAM

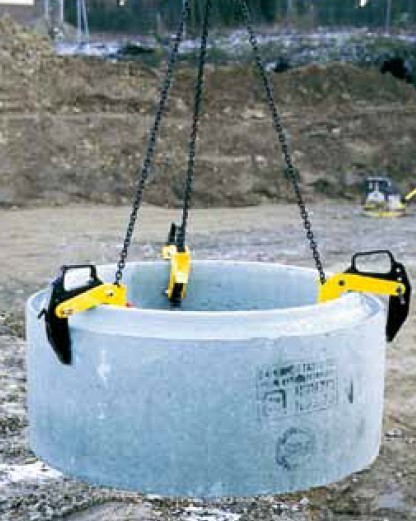

Clamp LPB is a three legged lifting system with large jaw capacity designed for the vertical transport of concrete pipe and culverts. Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp. This product is safe and easy to handle under even the harshest conditions.

Out of stock

Send inquiry

More details
Specifications

Lifting gear for concrete pipe up to a diameter of Ø 3000 mm is available on request. This product has a safety factor 4:1.

Warranty: 1 year

Images of the products are symbolic.
The table presents technical characteristics of clamp type LPB.

Model	Working load limit kg	Gripping area mm	Gripping hight E mm	Lock position F mm	Weight kg	Article No.
LPB 1,5/120	1.500	40 - 120	165	100	35	893401
LPB 3,0/180 TM-N	3.000	50 - 180	245	175	90	893402
LPB 3,0/220 TM-N	3.000	90 – 220	245	175	94	893403

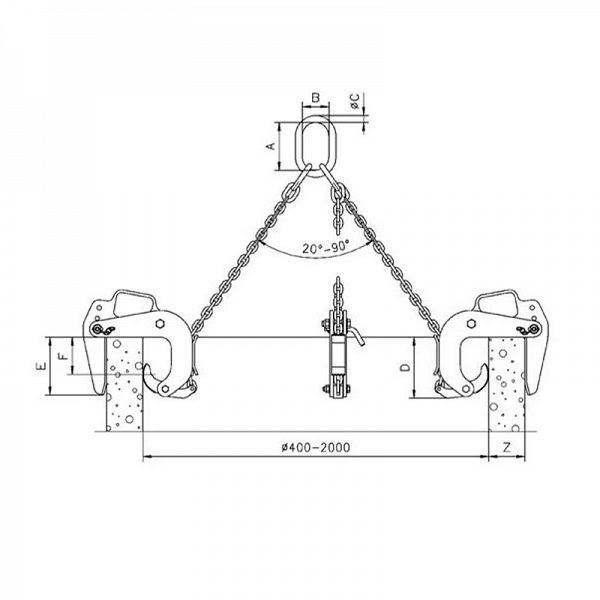

Model	LPB 1,5/120	LPB 3,0/180 TM-N	LPB 3,0/220 TM-N
A, mm	135	180	180
B, mm	75	100	100
Ø C, mm	18	26	26
D, mm	180	310	310
